CNC Pile Cage Roller Welder: 2025 Efficiency Revolution and Procurement Guide for Foundation Engineering

2025/11/20 09:55

As a core equipment that subverts traditional pile cage manufacturing modes, the CNC pile cage roller welder has become a must-purchase device for B2B buyers in the construction, transportation, and new energy sectors. Combining market dynamics, technical highlights, and procurement strategies, this article provides practical references for international purchasers.

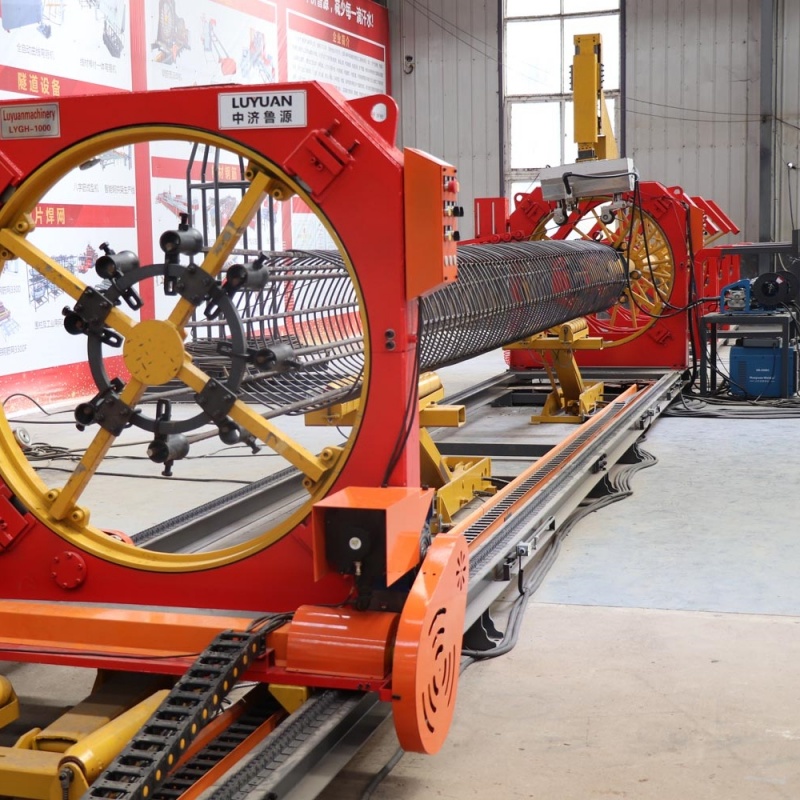

Pile Cage Roller Welder

Global Market Pattern: Steady Growth Driven by Infrastructure Dividends

According to data from Markets and Markets, the global CNC pile cage roller welder market achieved a compound annual growth rate (CAGR) of 5.8% from 2020 to 2024, with the market size exceeding USD 920 million in 2024. The Asia-Pacific region dominates with a 48% market share—China’s "Belt and Road" Initiative alone has driven demand for over 200,000 CNC pile cage roller welders in Southeast Asia. India’s "National Infrastructure Pipeline" program (with a total investment of USD 1.4 trillion) sees an annual procurement volume of over 30,000 units. These projects require millions of high-precision pile cages each year, making the CNC pile cage roller welder a core productivity tool for contractors.

Emerging markets such as the Middle East and Africa have become new growth engines, with an expected CAGR of 7.2% from 2025 to 2030. Saudi Arabia’s NEOM Future City has purchased 1,200 units for foundation construction, while Egypt’s New Administrative Capital completed the procurement of 800 units within two years. In contrast, mature markets in Europe and North America focus on equipment upgrades—60% of procurement demand comes from replacing traditional manual equipment. For instance, Germany’s infrastructure renovation projects explicitly require new equipment to meet EU Stage V emission standards, driving the popularization of energy-efficient CNC pile cage roller welders.

Core of the Product: Structure and Parameters Determine Application Value

A reliable CNC pile cage roller welder relies on a scientific modular design, consisting of five core systems:

CNC Control System: Adopts Siemens S7-1200 or Fanuc Series 0i PLC, with built-in 120+ preset pile cage models and real-time fault diagnosis, reducing operational errors by 80% compared to ordinary systems.
Main Reinforcement Feeding Mechanism: Equipped with Panasonic servo motors and Omron positioning sensors, enabling fully automated feeding and fixing, and completely replacing manual handling.
Spiral Reinforcement Winding Module: Features stepless speed regulation (0.5-3 m/min) to adapt to pitch requirements of 50-300 mm.
Automatic Welding System: 16 welding heads operate simultaneously, with optional resistance welding or CO₂ shielded welding, ensuring uniform welds without missing any joints.
Finished Product Unloading Device: Utilizes a hydraulic lifting system with a buffer structure to prevent deformation of pile cages.

Core parameters of mainstream models (e.g., LY-3500) cover most scenarios: processing diameter ranges from 500 mm to 3,500 mm, compatible with main reinforcements of 10-40 mm and spiral reinforcements of 5-16 mm; it can produce 3-5 sections of 12-meter-long pile cages per hour. The main reinforcement spacing error is ≤±2 mm, welding strength exceeds 95% of the base material’s tensile strength, and with a power of 25-45 kW, it supports 24/7 continuous operation with an annual failure rate of less than 1.5%.

Application Practice: Automated Processes Empower Key Projects

The fully automated process of the CNC pile cage roller welder is the core of its efficiency, requiring only 2-3 personnel for monitoring throughout the entire process:

After the operator inputs parameters such as diameter, length, and spacing, the system automatically verifies their rationality.
The main reinforcement is fixed on the turntable via the feeding mechanism (with a positioning accuracy of ±0.5 mm).
The spiral reinforcement is pre-straightened and then wound at the preset pitch, while the welding heads synchronously weld all intersection points (at a speed of 15 points per second).
Finally, the hydraulic device lifts and transfers the finished product horizontally, and the equipment automatically resets for the next cycle—this efficiency is 75% higher than traditional manual operations.

The reliability of this equipment has been verified in key global projects:

Bangladesh’s Padma Bridge adopted the LY-3000 bridge-specific CNC pile cage roller welder, completing the manufacturing of over 1,300 foundation pile cages with a diameter of 1.2 meters, achieving 99.8% dimensional consistency and shortening the construction period by 40%.
Australia’s Hornsdale Wind Farm used offshore wind power-specific CNC pile cage roller welders to manufacture large-diameter (3,500 mm) pile foundation cages, with anti-corrosion welding processes adapted to the marine environment.
Dubai Creek Tower Project utilized small CNC pile cage roller welders (Model LY-1000) to process over 500 small-diameter pile cages for deep pits, effectively preventing foundation settlement.

Buyer Insights: Preferences and Solutions to Pain Points

A 2024 survey covering over 200 engineering contractors shows clear procurement priorities for buyers:

75% focus on customization—for example, Indian buyers need to adapt to TMT rebars with a yield strength of 500 MPa, while European buyers emphasize compatibility with Grade 500E steel.
Buyers in remote regions such as Africa and Central Asia list "on-site installation, training, and 24/7 technical support" as essential requirements; 60% of African buyers regard "timely supply of spare parts" as a core criterion for selecting suppliers.
Cost preferences vary by region: emerging markets favor mid-range models priced at USD 45,000-160,000, while European and North American buyers are willing to pay a 20-30% premium for intelligent CNC pile cage roller welders.

Mature suppliers have developed solutions for three core pain points:

Raw material adaptation issues: Resolved through pre-sales material testing + customized clamps and welding parameters.
High maintenance costs: Addressed via "spare parts packages + online guidance" services, reducing downtime by 50%.
Long delivery cycles: Shortened by regional warehouses in Dubai, Singapore, and Germany—standard models are delivered in 2-4 weeks, and customized models in 3-6 weeks.

2025 Trends and FAQs

The industry is evolving in three key directions:

Portable models, suitable for remote small and medium-sized projects, grew by 45% year-on-year in 2024.
Intelligent upgrading is accelerating—models with IoT modules (enabling real-time monitoring of output and welding quality) are favored by European buyers.
Green transformation is imperative: Electric models account for 60% of the European market, saving 15% more energy than traditional models. It is expected that AI visual inspection will become a standard feature by 2026 (with a defect recognition rate of 99.2%).

Common Procurement Questions

Q1: What is the processing range of the CNC pile cage roller welder, and can it adapt to non-standard materials?A1: Standard models cover pile cage diameters of 500-3,500 mm and rebar diameters of 10-40 mm. Non-standard requirements (e.g., 400 mm small diameters or 45 mm thick main reinforcements) can be met with customized clamps and welding heads. For special materials such as high-alloy steel and corrosion-resistant steel, adaptability is ensured by adjusting welding processes and conducting pre-sales tests.

Q2: How long does installation and commissioning take, and what training is provided?A2: On-site installation and commissioning take 5-8 days for standard models and 7-10 days for customized models. Free training is provided for 3-5 operators, covering parameter setting, daily lubrication, and troubleshooting. For remote regions, multilingual (Chinese, English, Arabic, Russian) video training and a 1-month post-sales follow-up service are available.

Q3: What guarantees are provided for warranty and after-sales service?A3: The whole machine comes with a 12-month warranty, and core components (CNC system, servo motor, etc.) have an extended warranty of 24 months. After-sales centers are located in Dubai, Singapore, and Russia.

Q4: How to verify performance before large-volume procurement?A4: Third-party testing reports can be provided; buyers are welcome to visit the factory for on-site inspections, and trial production can be conducted using rebars specified by the buyer.

Call to Action

Whether you are a contractor for bridge construction in Southeast Asia, wind power projects in Australia, or high-rise building construction in the Middle East, we can provide CNC pile cage roller welder solutions tailored to your project. You can now obtain the following for free: ① Project demand assessment and model recommendation; ② Detailed technical parameters and testing reports; ③ Trial production samples using your specified raw materials.
