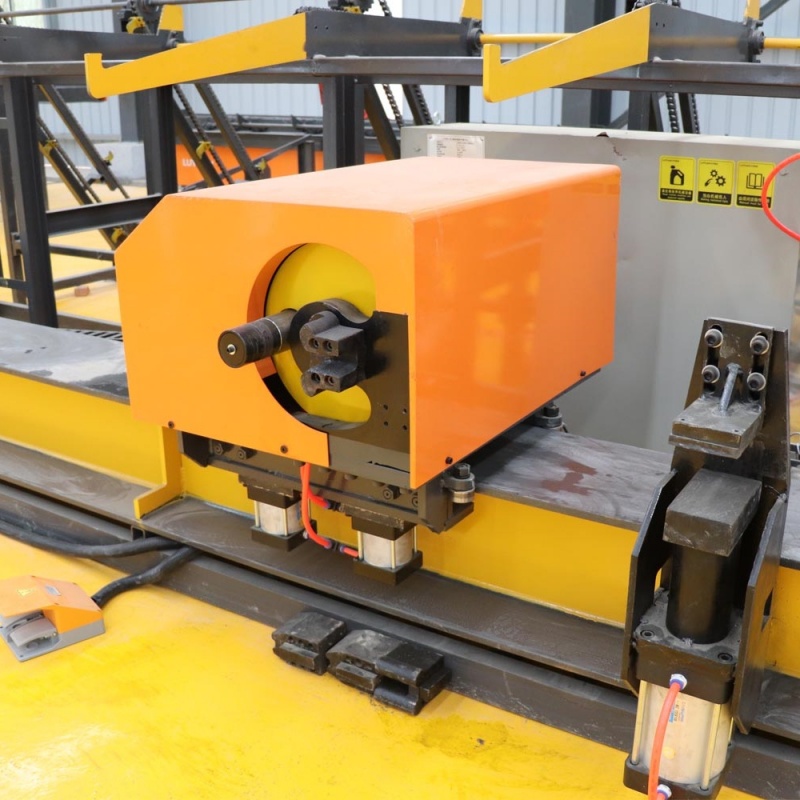

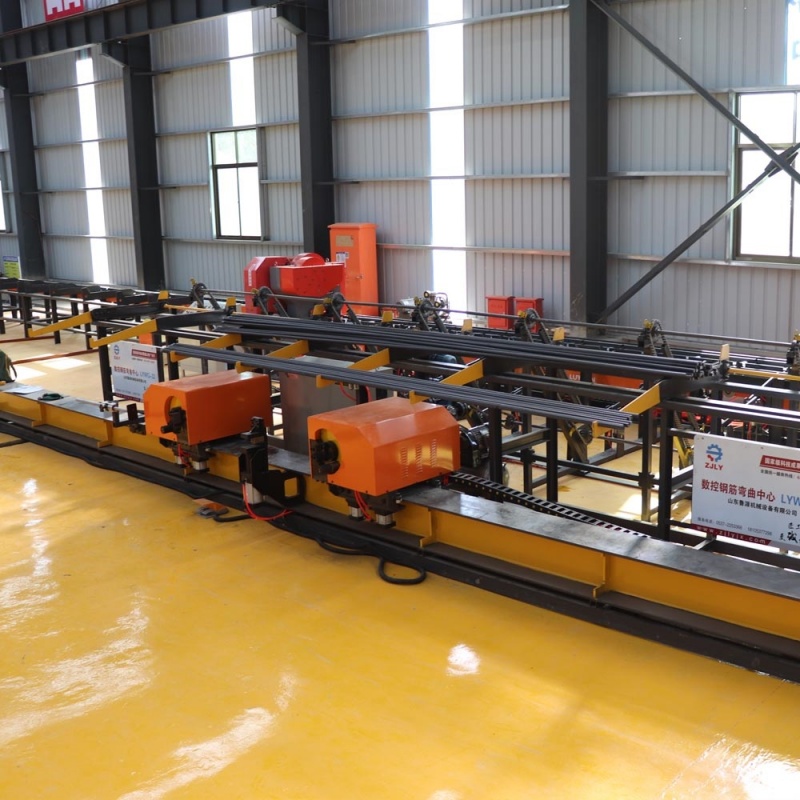

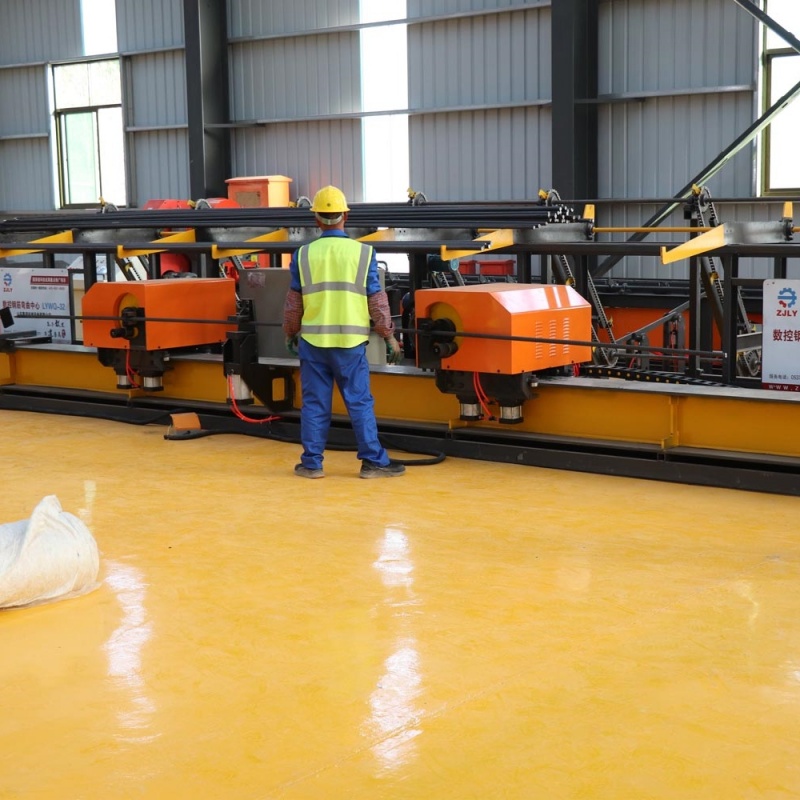

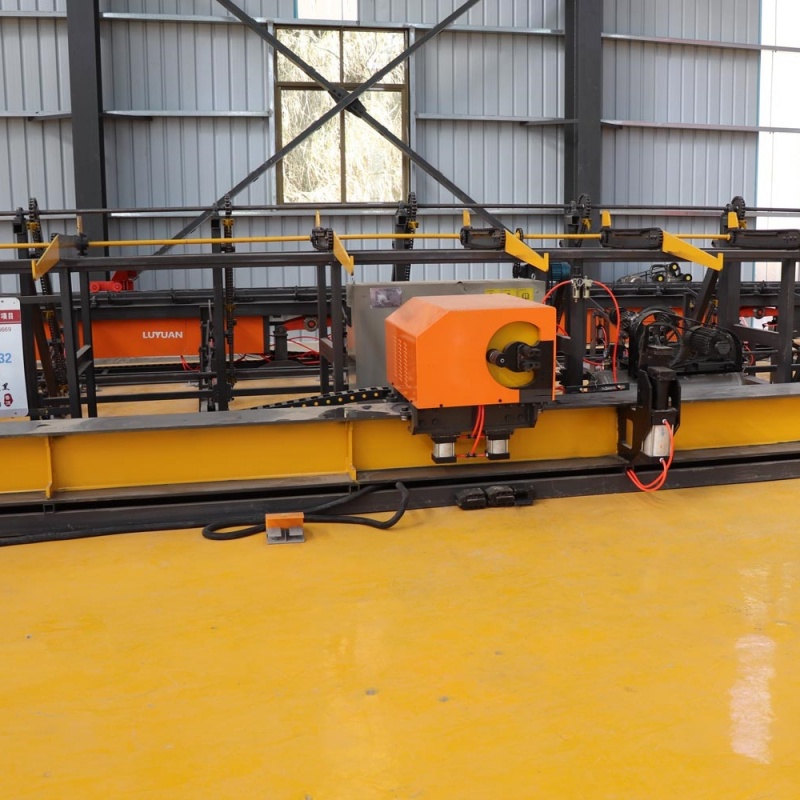

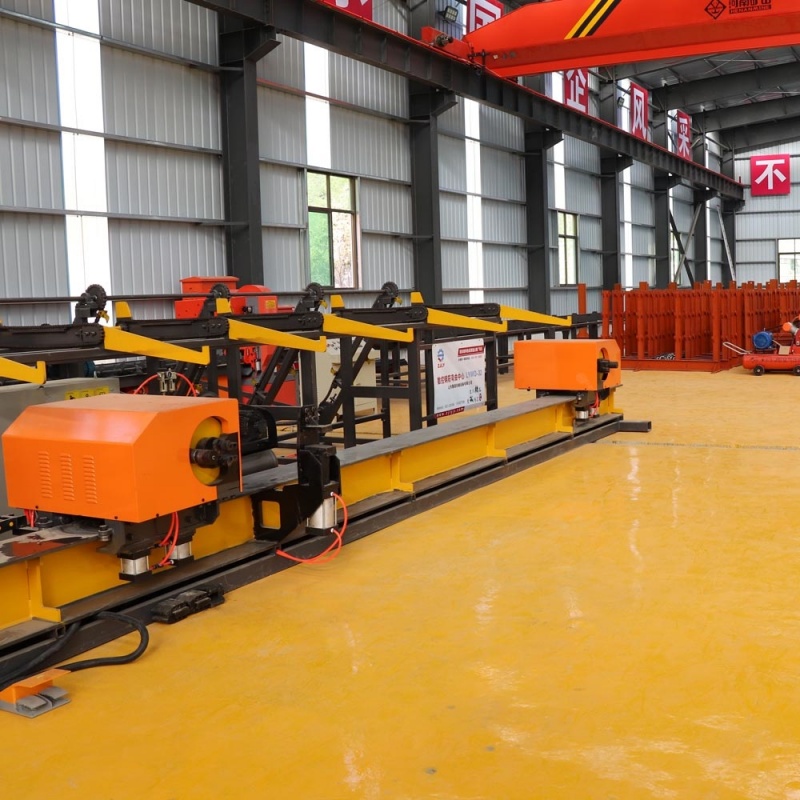

CNC Vertical Rebar Bending Center
The CNC vertical rebar bending center is a high-performance rebar processing equipment that integrates advanced CNC technology, precision mechanical design, and an intelligent control system. Specifically designed for the precise bending of rebars of various specifications in projects such as construction, bridges, and tunnels, it has completely transformed the traditional manual processing mode, realizing the automation, precision, and high efficiency of rebar processing.
![CNC Vertical Rebar Bending Center]( "CNC Vertical Rebar Bending Center")
Core Advantages
Outstanding Processing Precision
Bending angle error: Within ±1 degree
Length positioning error: Within ±2 mm
Repeat positioning accuracy: ±0.5 mm
Remarkable Production Efficiency
Processing speed: 3-4 times that of traditional processes
Maximum daily processing capacity: 5,500 rebars
Can replace 12 skilled workers
Supports 24/7 continuous operation
Wide Material Adaptability
Processing diameter range: Φ6mm - Φ32mm
Supported materials: Threaded steel, round steel, stainless steel, etc.
Tensile strength: ≤500MPa
Technical Parameters
| Item | Specification Parameter |
|---|
| Processing Diameter | Φ6 - 32mm |
| Bending Angle | Arbitrarily adjustable from 0° to 180° |
| Working Speed | 0 - 90 meters/minute |
| Number of Control Axes | 4 - 6 axes |
| Power Requirement | 380V/50Hz |
| Total Power | 15 - 25kW |
| Equipment Weight | Approximately 4.5 tons |
| Overall Dimensions | 4500×1500×1800mm |
Core Technical Features
Intelligent Control System
Adopts imported dedicated CNC control system
Equipped with a touchscreen human-machine interface for easy operation
Built-in database with over 100 standard patterns
Supports custom pattern programming and storage
Features fault self-diagnosis function
Precision Transmission System
Driven by servo motors to ensure precise positioning
Rack-and-pinion moving structure for stable operation
High-rigidity machine body design to reduce vibration
Imported precision guide rails to ensure long-term accuracy
Safety Protection Design
Fully enclosed protective cover to ensure operational safety
Emergency stop button with multiple safety protections
Photoelectric safety sensors for real-time monitoring
Overload protection device to prevent equipment damage
Application Fields
Construction Engineering
Processing of rebar skeletons for high-rise buildings
Bending of rebars for basement structures
Forming of rebars at beam-column joints
Transportation Engineering
Processing of rebars for high-speed railway bridges
Bending of support rebars for highway tunnels
Fabrication of rebars for rail transit projects
Water Conservancy and Electric Power
Processing of rebars for hydropower station construction
Precise bending of rebars for nuclear power projects
Fabrication of rebars for water conservancy facilities
Operation Process
Preparation
Check if all components of the equipment are in normal condition
Select or program the processing pattern
Set processing parameters and quantity
Install the appropriate bending die
Processing Process
Automatic feeding and positioning
CNC precise bending
Real-time quality monitoring
Automatic blanking and stacking
Completion of Work
Quality inspection and acceptance
Equipment cleaning and maintenance
Recording of processing data
On-site cleaning and organization
Maintenance
Daily Maintenance
Check the lubrication system daily
Clean dust on the equipment surface
Inspect the status of fasteners
Record equipment operation data
Regular Maintenance
Replace lubricating oil monthly
Inspect wear of transmission components
Calibrate the accuracy of sensors
Update system software
Quality Assurance
This product strictly complies with the ISO9001 quality management system standards and provides the following quality guarantees:
Whole-machine warranty period: 12 months
Warranty period for core components: 24 months
Lifetime technical support
After-sales service response within 24 hours
Optional Functions
According to different customer needs, the following optional functions can be provided:
Automatic feeding system
Remote monitoring system
Production statistics system
Barcode management system
Multi-machine linkage control system
Conclusion
With its outstanding performance, reliable quality, and intelligent operation, the CNC vertical
rebar bending center has become an indispensable key equipment in modern construction. Choosing our product means choosing an efficient, precise, and reliable rebar processing solution. We are committed to providing customers with the highest quality products and services, and jointly promoting the development of the construction industry towards intelligence and modernization.
