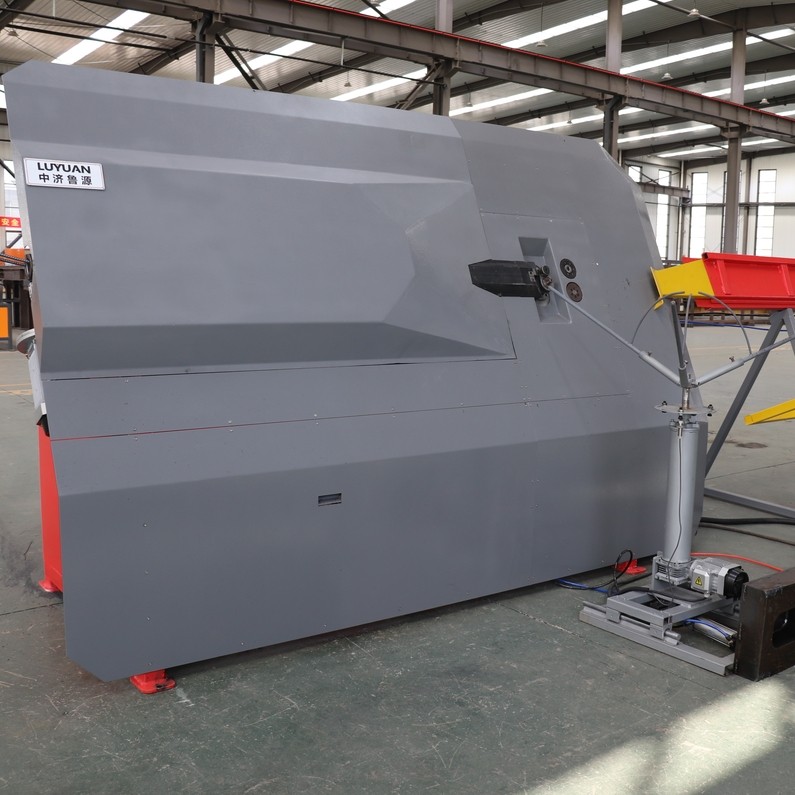

Steel Bar Bending Machine
1.Digital Program Control: Ensures precise and efficient operation.
2.User-Friendly Interface: Interactive man-machine interface for easy control.
3.Versatile Functionality: Capable of piercing, straightening, and bending various graphics.
4.Easy Maintenance: Simplified design for convenient upkeep.
5.Customizable Accessories: Tailored solutions to meet diverse market needs.
Product Description
The steel bar bending machine is a kind of equipment commonly used in steel bar processing, which can bend the steel bar into the specified Angle and shape, and is very practical. This machine has two kinds of semi-automatic and fully automatic, which rely on mechanical transmission and control system to complete the work. The failure rate is low, the bending speed is fast, the energy consumption is low, and the noise and vibration are quite small. The operation interface is very humanized, and the processing precision is high.
Parameters
1 Single line processing capability | Φ6-12 |
2 Double line processing capability | Φ6-10 |
3 Maximum diagonal side length of stirrup (positive bending) | 1500mm |
4 Production efficiency | Single line production capacity:1100 pcs/hour |
5 Bending Angle (positive and negative) | 180° |
6 Diameter of central axis (mm) | Φ16/Φ20/Φ26(customizable) |
7 Height of axis of center of bending to ground | 1400mm |
8 Maximum feed rate | 100m/min |
9 Maximum bending speed | 1100°/s |
10 Length accuracy | ±1mm |
11 Bending angle accuracy | ±1° |
12 Total power(KW) | 34 |
13 Average power consumption(KW) | 6(related to the diameter of the processing steel bar) |
14 Overall dimension(mm) | 3300X2200X1300 |
15 Total weight(kg) | 2200 |
Scope of Use & Function
This automatic CNC reinforcement bending machine is widely used in railways, highways, bridges, airports, housing construction, rebar processing plants, and other infrastructure projects. Independently developed by our company with proprietary intellectual property rights, it incorporates advanced European technology and integrates multiple functions including straightening, sizing, bending, and shearing. It is especially suitable for forming stirrups, hook bars, and plate bars, offering high efficiency, precision, and versatility in rebar processing.
