The traditional manual binding production method is increasingly becoming a bottleneck restricting project progress, costs, and quality. The emergence of fully automatic steel cage rolling welders, however, represents a complete revolution in traditional processes. With the power of technology, they inject brand-new vitality into modern infrastructure construction.
![Steel Cage Welding Equipment]( "Steel Cage Welding Equipment")

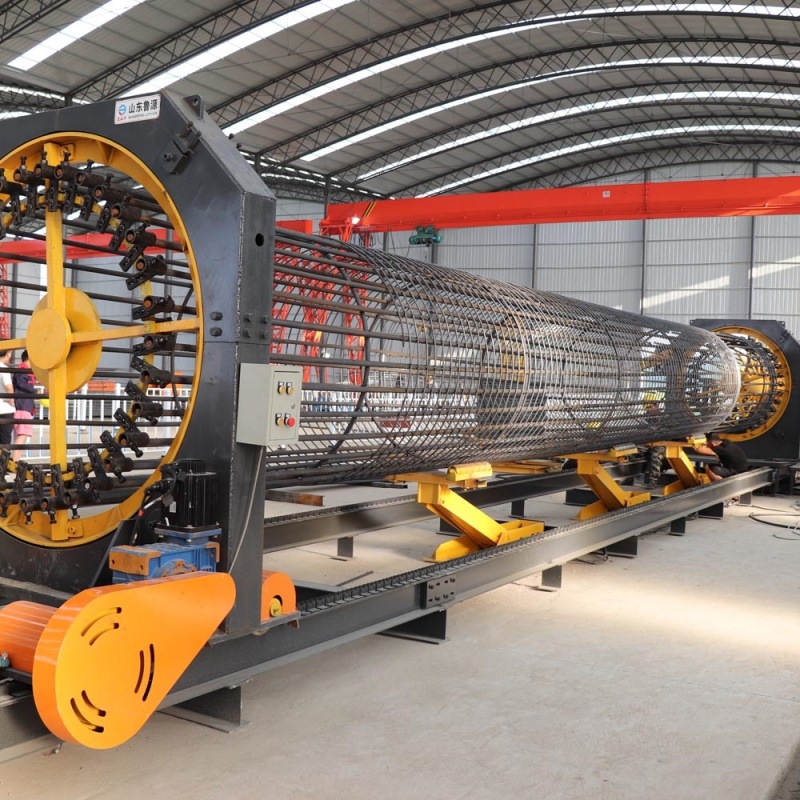

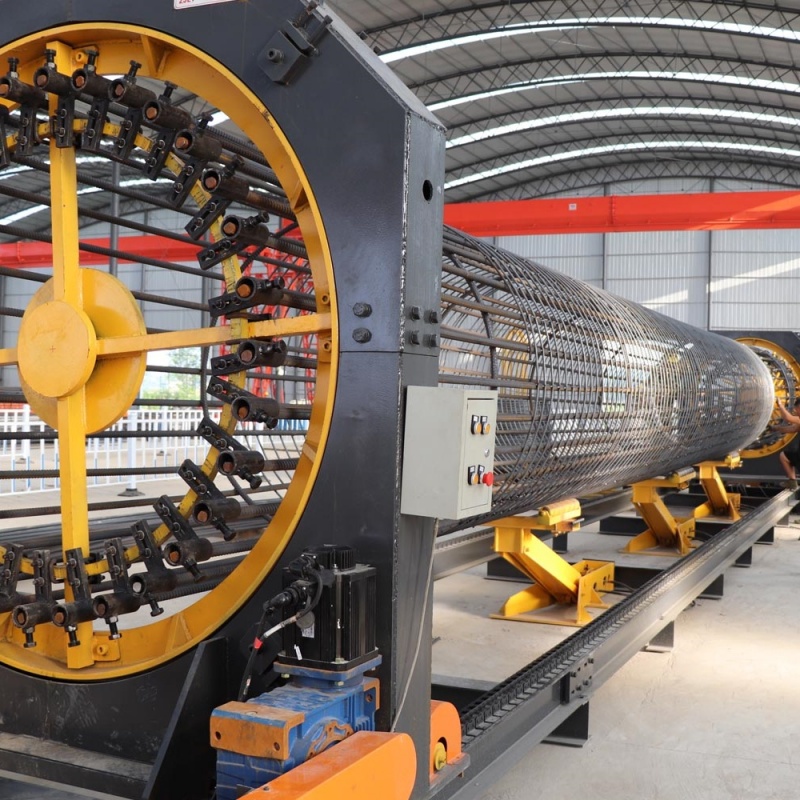

I. What is a Steel Cage Rolling Welder? — Redefining Steel Cage Production Methods
A
steel cage rolling welder is an intelligent device that integrates numerical control, mechanical, and welding technologies. Through precise mechanical transmission and a computer control system, it automatically completes a series of complex processes such as main reinforcement feeding, spiral reinforcement coiling, and synchronous welding, ultimately forming uniform-specification, firmly welded steel cage products in one go.
Compared with the traditional "mass labor" manual production method, it achieves a leap from "manufacturing" to "intelligent manufacturing" and serves as the core standard equipment in modern steel processing centers.
II. Core Technical Advantages: Why It Is Your Better Choice?
Efficiency Leap and Production Capacity Multiplication
Subversive Speed Improvement: A standard rolling welder can achieve a daily output of 20-30 sections (based on 12-meter length), with an efficiency 5-8 times that of traditional manual work. This significantly shortens the project cycle and ensures construction progress.
Continuous Operation: The equipment can realize continuous production without interruption, unaffected by factors such as worker fatigue and weather, resulting in highly controllable production plans.
Outstanding Quality and Consistent Performance
Precision Control: Adopting a numerical control system, the spacing of main reinforcements and spiral reinforcements can be accurately set and maintained stably, eliminating human errors and ensuring that the size of each steel cage fully complies with design specifications.
Excellent Welding: Using processes such as resistance welding or carbon dioxide shielded welding, the weld spots are full and uniform. Their strength far exceeds that of manually bound lap joints, greatly enhancing the overall structural strength and stability of the steel cage.
Cost Control and Significant Benefits
Direct Labor Cost Savings: Only 2-3 people are needed to operate the entire production line, significantly reducing reliance on skilled binding workers and saving substantial labor costs.
Material Cost Optimization: Through precise calculation and automated processing, steel bar waste is effectively reduced, and material utilization rate is close to the maximum.
Hidden Cost Reduction: Consistent high quality reduces rework rates, improves construction safety, and avoids potential losses caused by quality issues and project delays.
Safety and Humanized Design
The equipment is equipped with multiple safety protection devices (such as emergency stop, protective cover interlock, etc.), which effectively isolate operators from welding and transmission areas, fundamentally reducing the risk of work-related injuries.
Automated production reduces workers' labor intensity, improves the working environment, and transforms the labor force into technical positions related to equipment operation and maintenance.

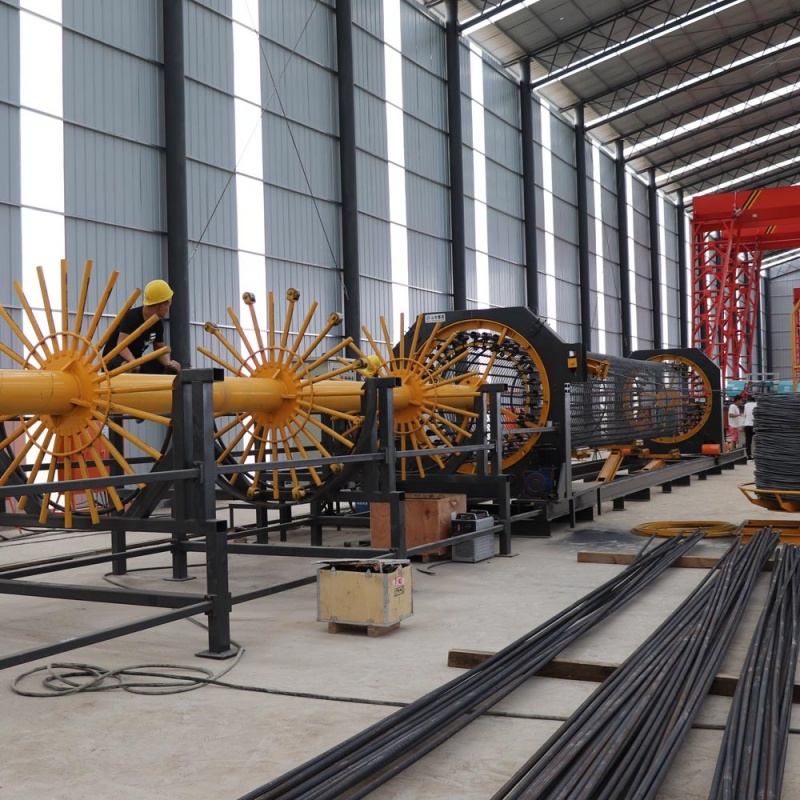

III. Intelligent Working Principle: Unveiling the Birth Process of the "Steel Giant Dragon"
The working process of our rolling welder is clear and efficient, just like a well-trained mechanical band:

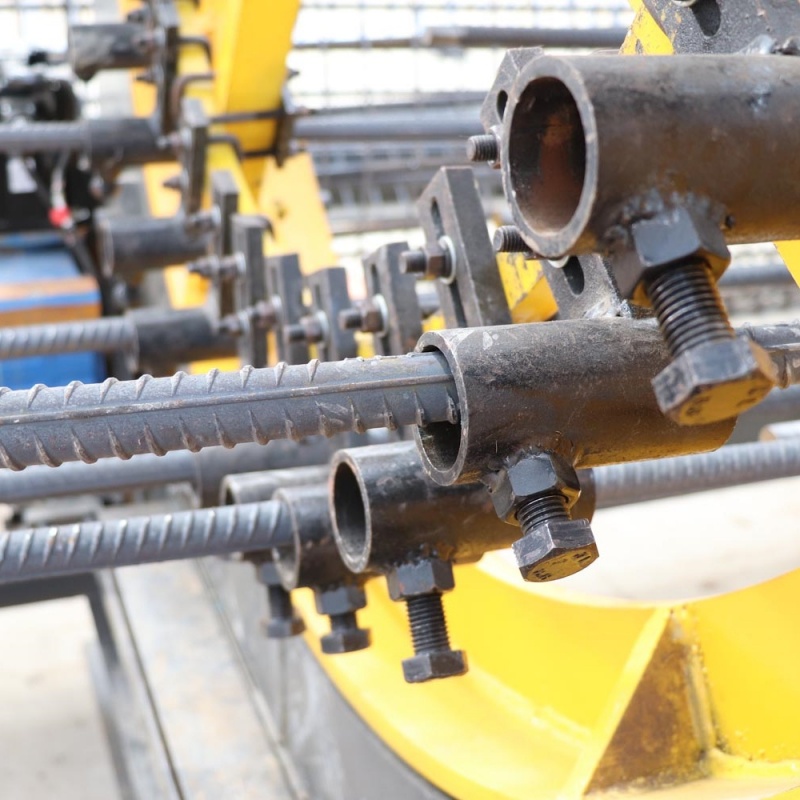

Precise Feeding: The pre-straightened main reinforcements are fed into the fixed disk of the equipment through an automatic material distribution mechanism.

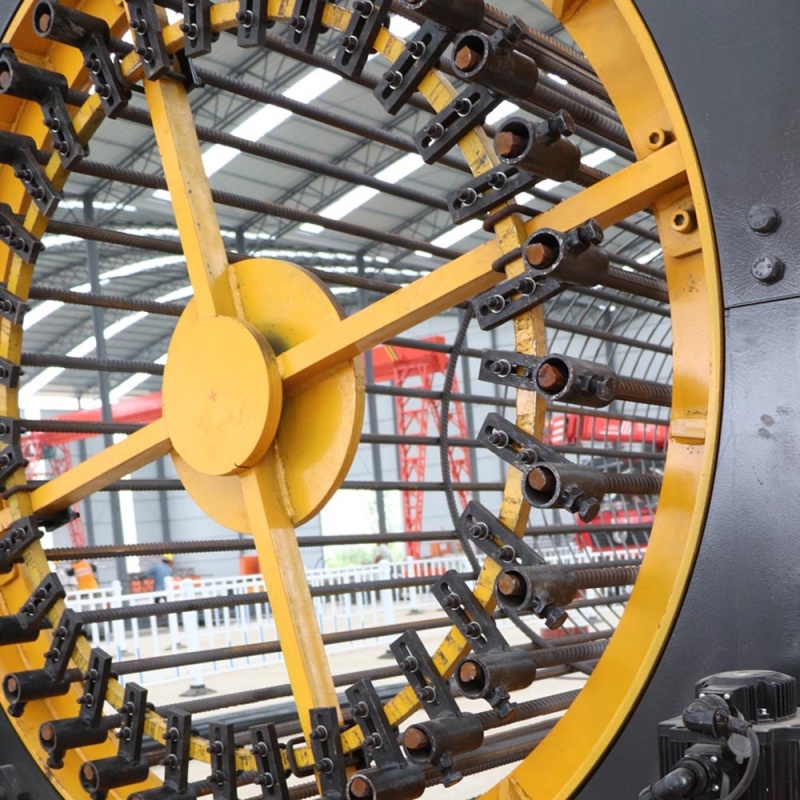

Synchronous Driving: The fixed disk and the moving disk rotate synchronously under the drive of servo motors.
Intelligent Welding While Coiling: During the rotation process, the steel bars on the spiral reinforcement disk are accurately coiled around the main reinforcements. At the same time, the welding mechanism moves synchronously to firmly weld each intersection point.
Steady Forming: While rotating, the moving disk moves horizontally at a constant speed, pushing the formed steel cage to continuously "grow" until it reaches the preset length.
Automatic Detachment: After welding is completed, the steel cage is detached from the equipment and moved out by an auxiliary spreader, preparing for the next cycle.
The entire process is fully automated; operators only need to input parameters on the control screen and monitor the operation status.
IV. Wide Application Fields
This equipment is an ideal choice for various projects requiring high-strength and standardized steel cages:
Bridge Engineering: Bored pile foundations.
High-Rise Buildings: Deep foundation pit support and pile foundations.
Water Conservancy and Hydropower: Reinforcement piles for dams and dikes.
Rail Transit: Support piles for bridges and tunnels in subways and railways.
Wind Power Foundations: Giant foundation piles for wind turbines.
V. How to Choose the Right Rolling Welder for You? — Professional Selection Guide
When choosing equipment, be sure to consider your own project needs and focus on the following points:
Steel Cage Specifications: Clarify the diameter range, length, and specifications of main/spiral reinforcements for the steel cages you frequently process. The equipment model must fully cover your product range.
Automation Level: Based on budget and production capacity requirements, select a basic numerical control model or a higher-level model with functions such as automatic feeding and robotic handling.
Core Configuration: Pay attention to the electrical control system (e.g., PLC, servo motor brand), welding power source brand, and the material and craftsmanship of key mechanical components, as these are directly related to the stability and service life of the equipment.
Manufacturer Strength: Choose manufacturers with mature technology, rich project cases, and complete after-sales services to ensure trouble-free equipment installation, commissioning, training, and subsequent maintenance.
Investing in a fully automatic steel cage rolling welder is not just purchasing a piece of equipment, but introducing an efficient, reliable, and future-oriented productivity solution for your enterprise. It represents the development direction of the steel processing field and is a powerful weapon for you to maintain a leading position in the fierce market competition.
