The Choice for Construction Industrialization: How Does the CNC Rebar Stirrup Bending Machine Help Reduce Costs and Improve Efficiency?

With its high-precision and high-efficiency processing capabilities, the CNC rebar stirrup bending machine is leading a profound transformation in rebar processing operations and gradually replacing the traditional, low-efficiency manual mode. This automated equipment, which integrates functions such as straightening, bending, and cutting, has now been widely used in various projects including construction, high-speed railways, and water conservancy projects.

🔧 Working Principle and Core Technology

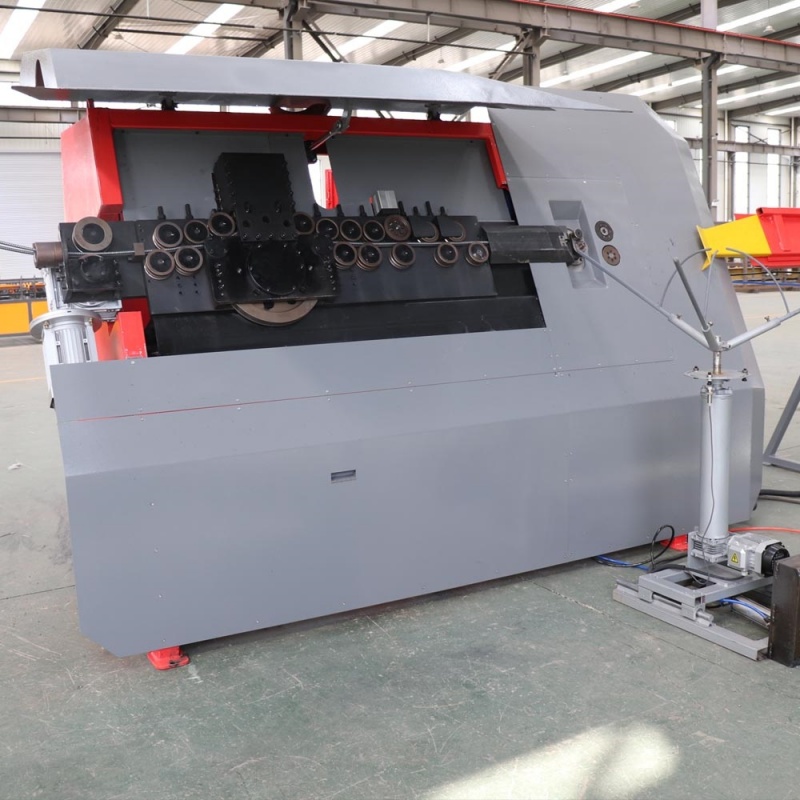

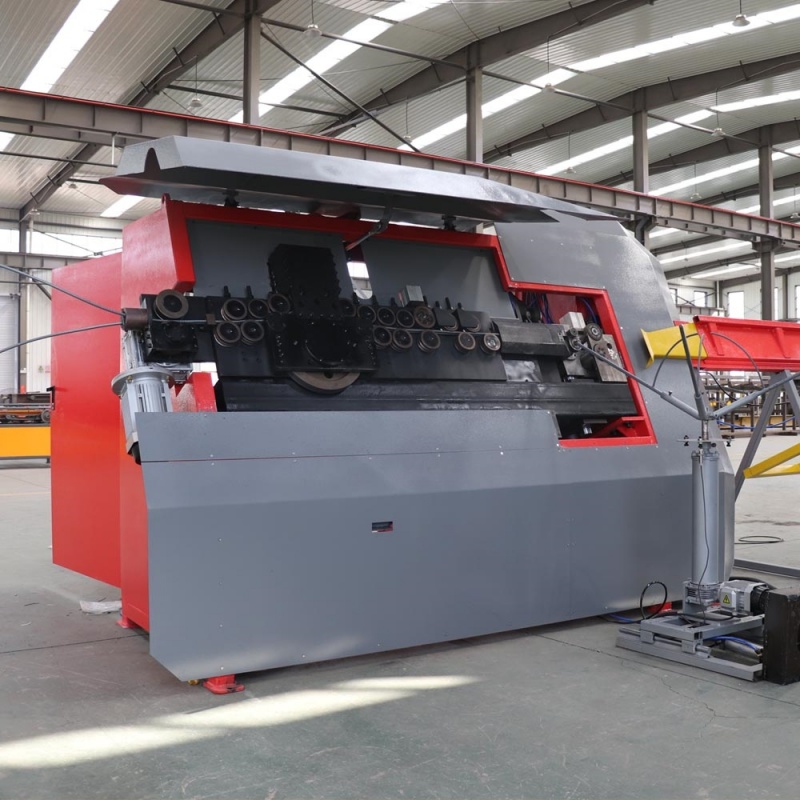

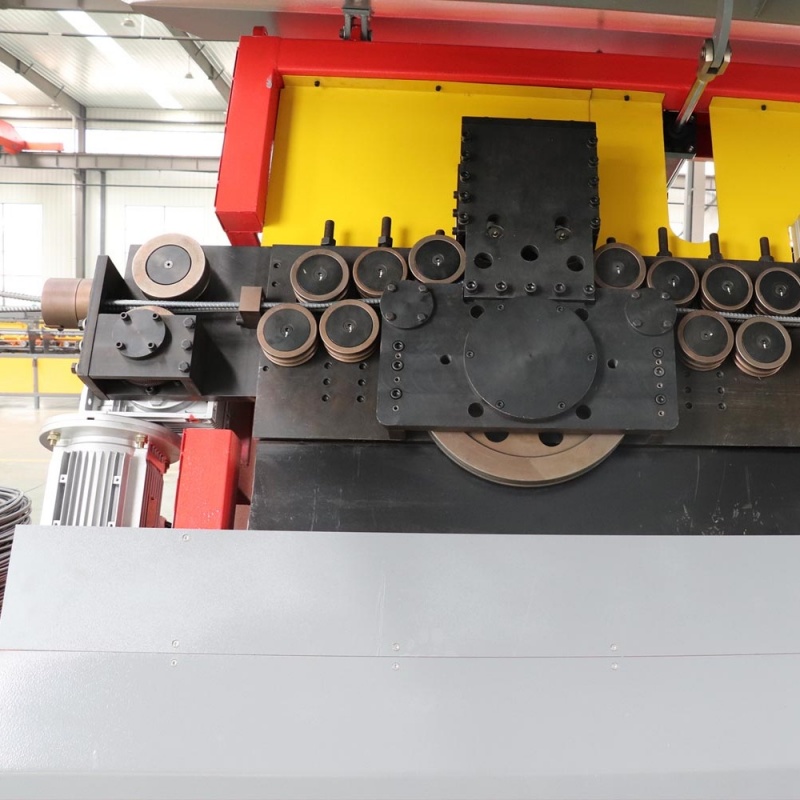

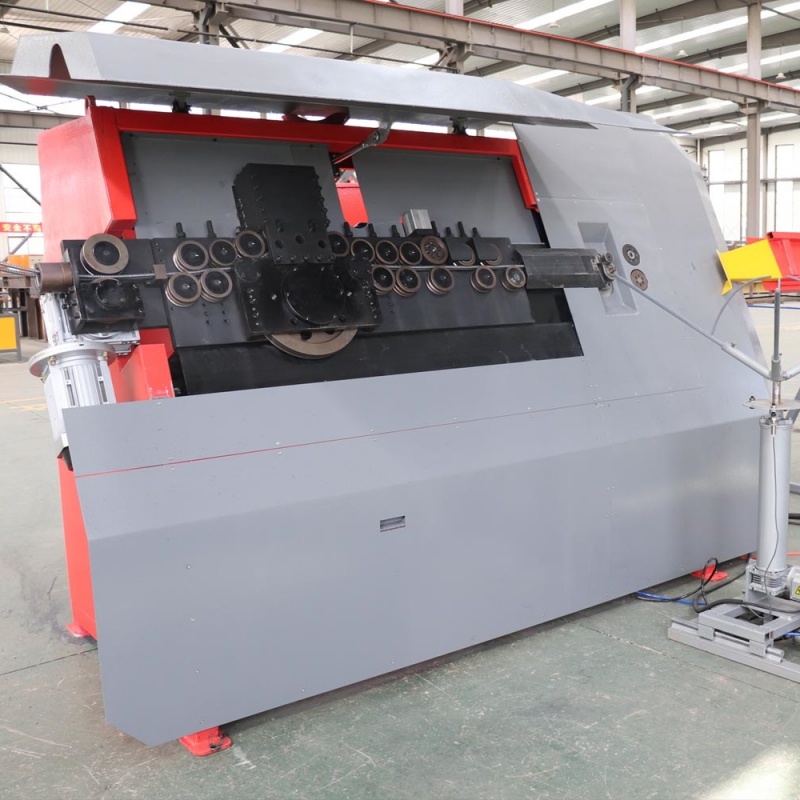

• Straightening Mechanism: Usually composed of two sets of automatically adjustable straightening wheel groups (horizontal and vertical), combined with traction wheels. It straightens the coiled rebar to ensure the rebar achieves the optimal straightness.

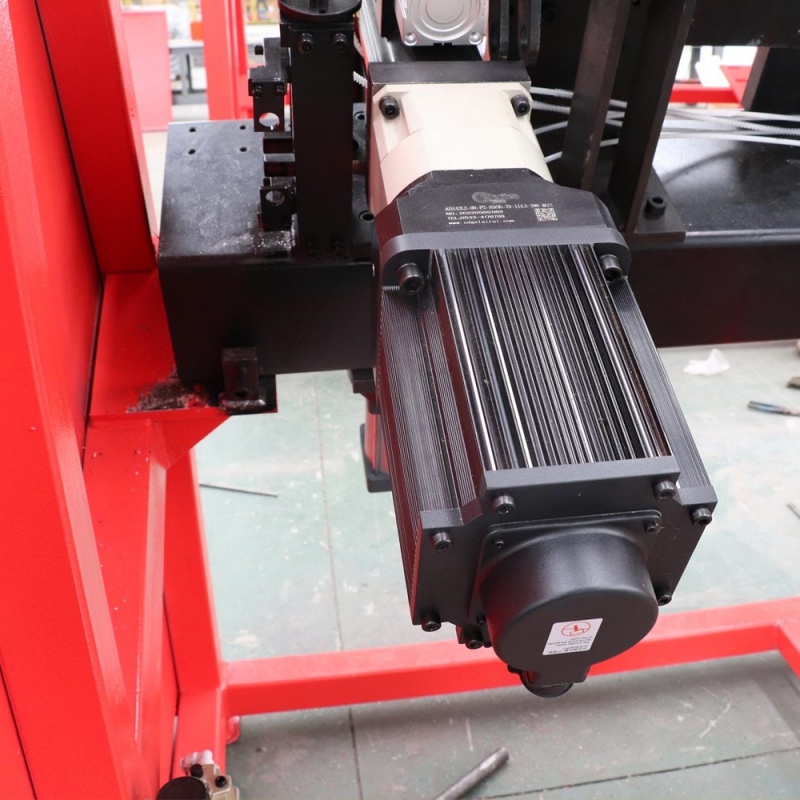

• Bending and Cutting Mechanism: The servo motor drives the bending arm to rotate and expand/contract at high speed to achieve precise angle bending; the cutting mechanism completes the rebar cutting instantly after forming.

•


✨ Main Product Features and Performance Parameters

1. High Efficiency and Automation

2. High-Precision Processing

3. Processing Capacity and Flexibility

• The diameter range for single-line processing is usually φ5-12mm, and some models support dual-line processing, with the diameter range for dual-line processing usually being φ5-10mm.

• It can process rebars of various materials such as plain round rebars, cold-rolled ribbed rebars, and hot-rolled ribbed rebars.

• The control system can store hundreds or even thousands of graphic templates, supporting quick switching for producing stirrups of different shapes without stopping the machine for adjustment.

4. Easy Operation, Energy Conservation and Environmental Protection

• It adopts a graphical touchscreen operation interface, which is easy to learn and use.

• The equipment is usually equipped with automatic fault diagnosis and alarm functions, facilitating maintenance.

• Compared with traditional decentralized equipment processing, the integrated design reduces total energy consumption, and the actual power consumption of some models is approximately 6kWh.

🏗️ Main Application Fields

• Construction Engineering: Used for processing stirrups of components such as beams, columns, and slabs in civil residences and commercial buildings.

• Large-Scale Infrastructure Construction: Widely applied in projects with high requirements for rebar processing quality, such as high-speed railways, highways, large bridges, and water conservancy projects.

• Prefabricated Component Production: Provides an efficient rebar component processing solution for construction industrialization.

💡 Considerations for Selection and Usage

Selection Considerations

• Processing Requirements: Choose an appropriate model based on the diameter range of frequently processed rebars (single-line or dual-line) and output requirements (hourly output).

• Power and Energy Consumption: Pay attention to the total power and energy consumption of the equipment to ensure it matches the on-site power supply conditions.

• Control System and Functions: Understand the stability of the control system, the capacity of the graphic library, and whether it has additional functions such as fault diagnosis.

• After-Sales Service and Technical Support: Select suppliers that can provide reliable technical support and spare parts supply.

Usage Precautions

When using the equipment, safety operating procedures should be followed, including checking the equipment performance, ensuring the protective cover is reliable, and prohibiting personnel from standing within the operating radius.

Summary
