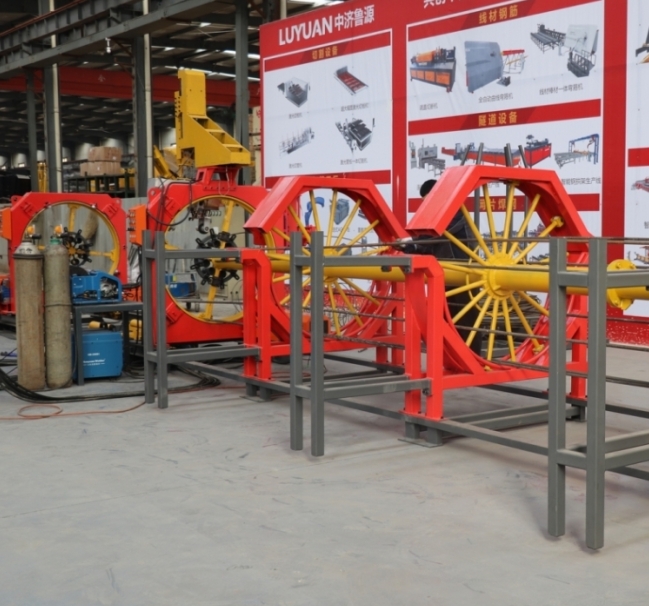

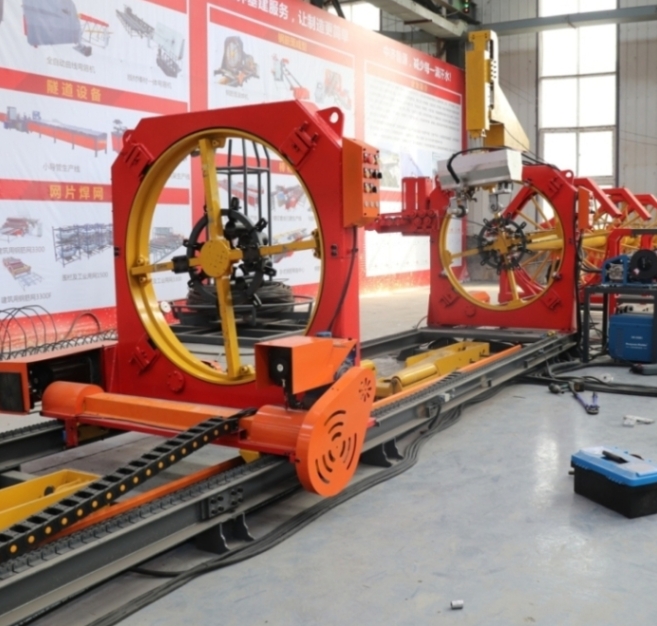

Steel Bar Cage Welding Machine
CNC Steel Bar Cage Roll Welding Machine LYGH-1250D is of high degree of automation and wide range of processing. Customers can choose the matching double gun welding robot. It liberates labor, improves efficiency, and the steel cage is formed beautifully.
Equipment Model：LYGH-1250D
Steel cage pile diameter: Φ350~1250
Cage length: 12m，Larger than 12 meters can be customized
Diameter of main bar of steel cage: Φ16~40, Customizable
Diameter of winding bar of steel cage: Φ6~12, Customizable

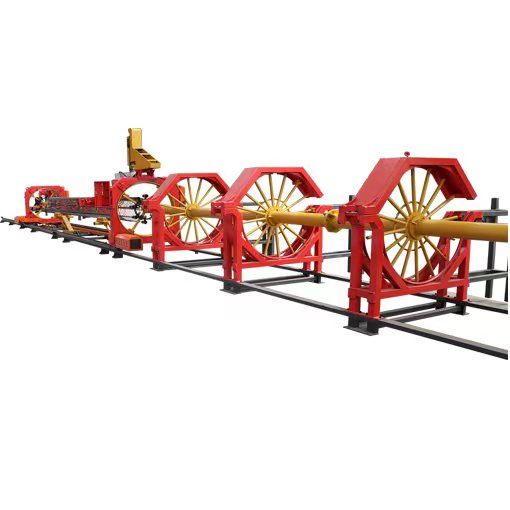

CNC Steel Bar Cage Roll Welding Machine 1250D is of high degree of automation and wide range of processing. Customers can choose the matching double gun welding robot. It liberates labor, improves efficiency, and the steel cage is formed beautifully.
Parameters
Equipment Model：LYGH-1250D
Steel cage pile diameter | Φ350~1250 |
Cage length | 12m，Larger than 12 meters can be customized |
Diameter of main bar of steel cage | Φ16~40, Customizable |
Diameter of winding bar of steel cage | Φ6~12, Customizable |
Distance between two winding bars | ≤300mm |
Hydraulic pressure | ≤16MPa |
Gas pressure | ≤0.8MPa, Automatic welding gas |

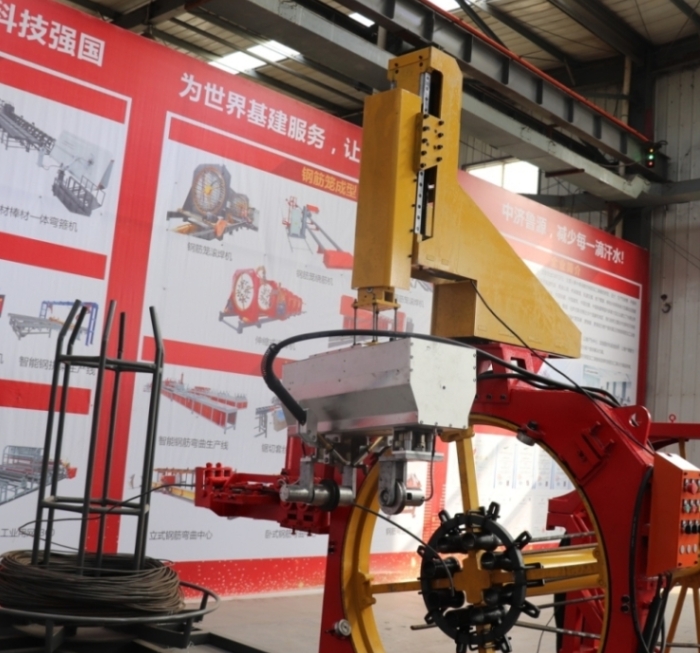

Automatic welding type | Two guns on top |
Equipment power | Power 60KW，Welding 30KW |
Number of operators | 2 persons |
Production efficiency | 8 sections/10h，12m/section |
Occupied area | 28m×8m |

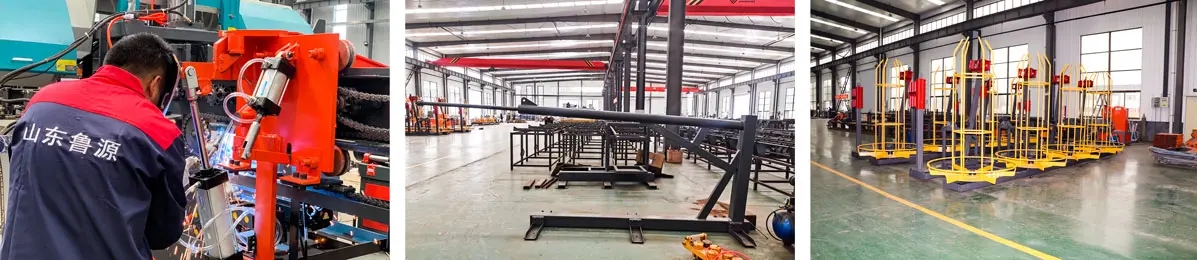

Factory Show
