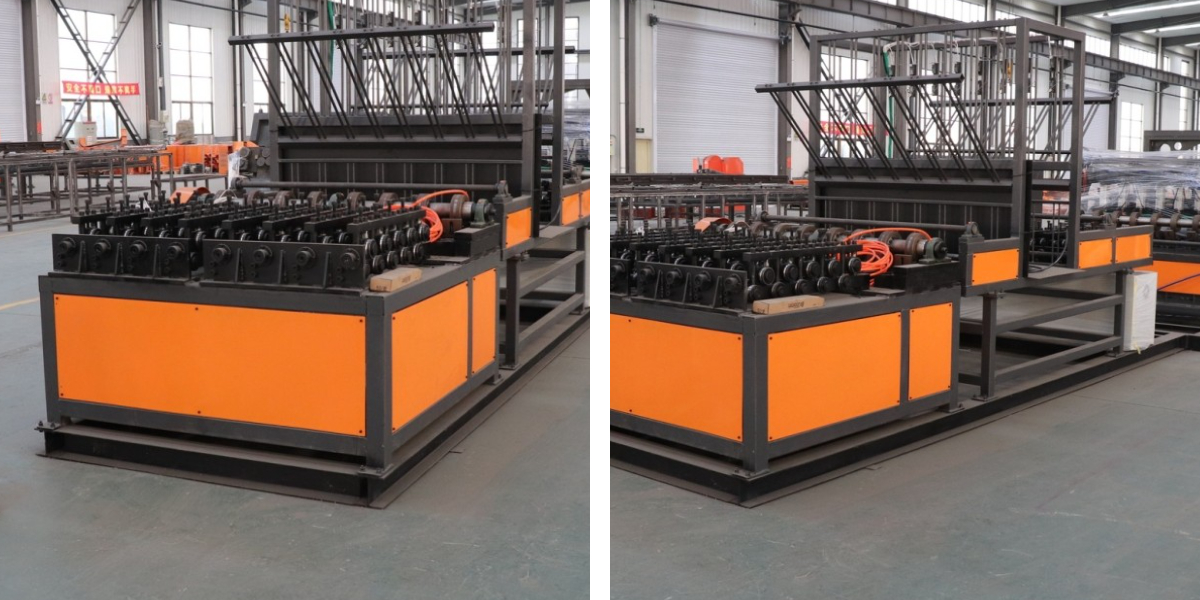

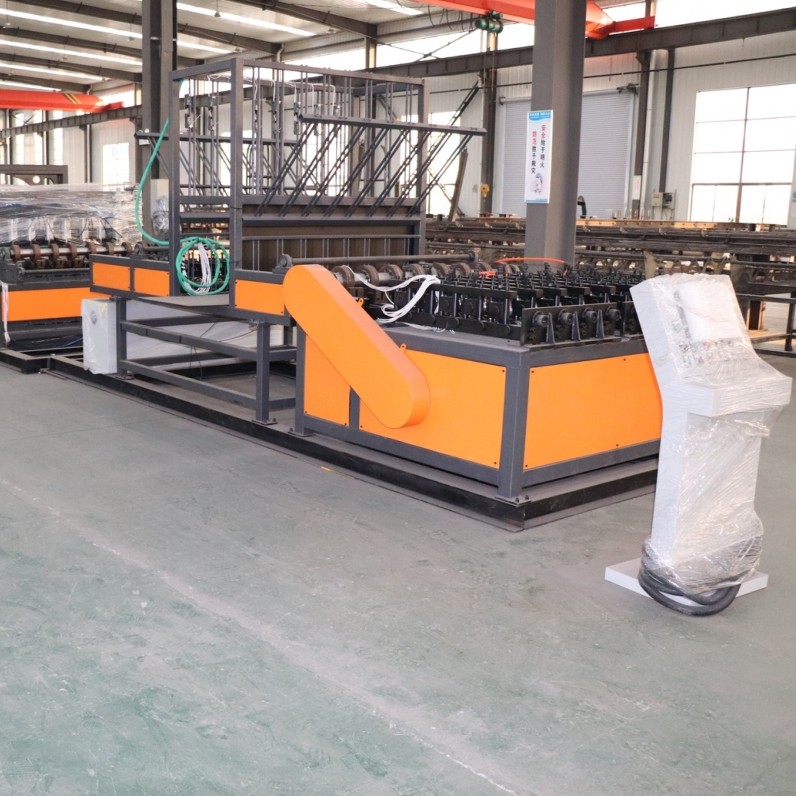

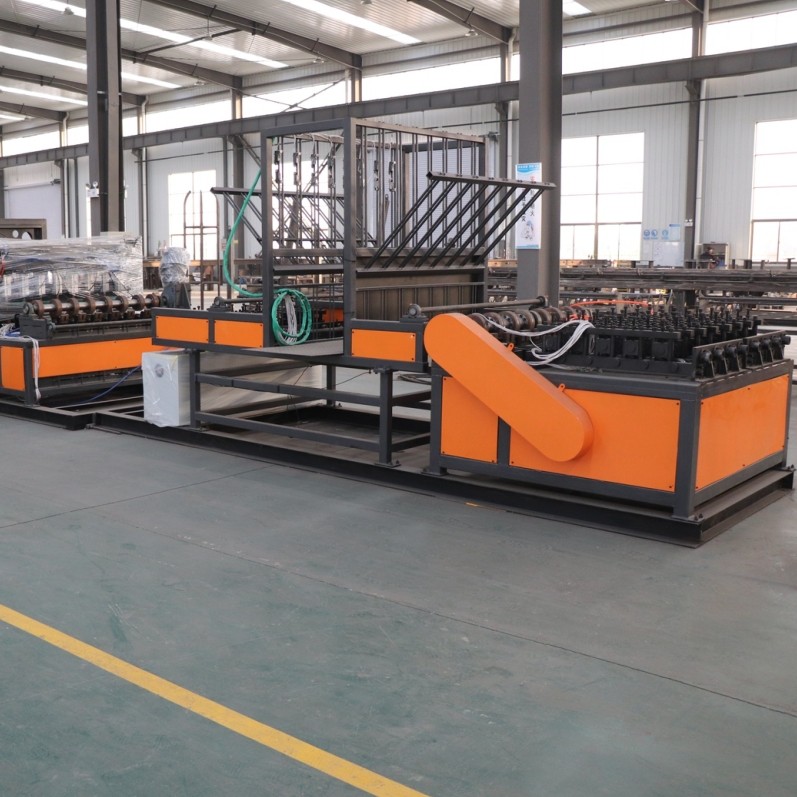

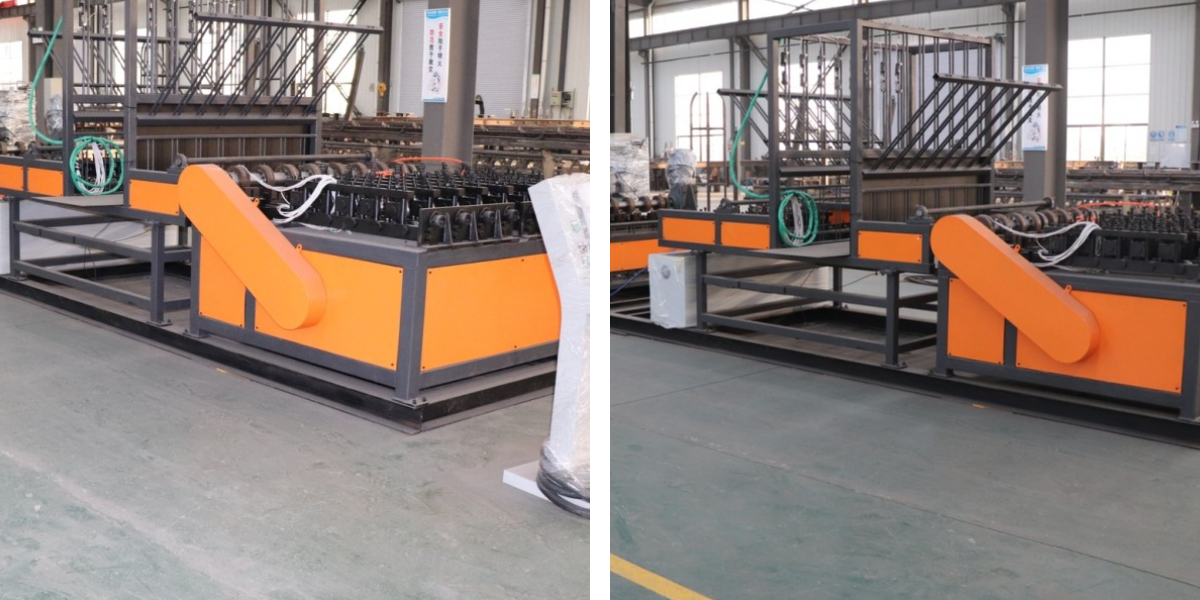

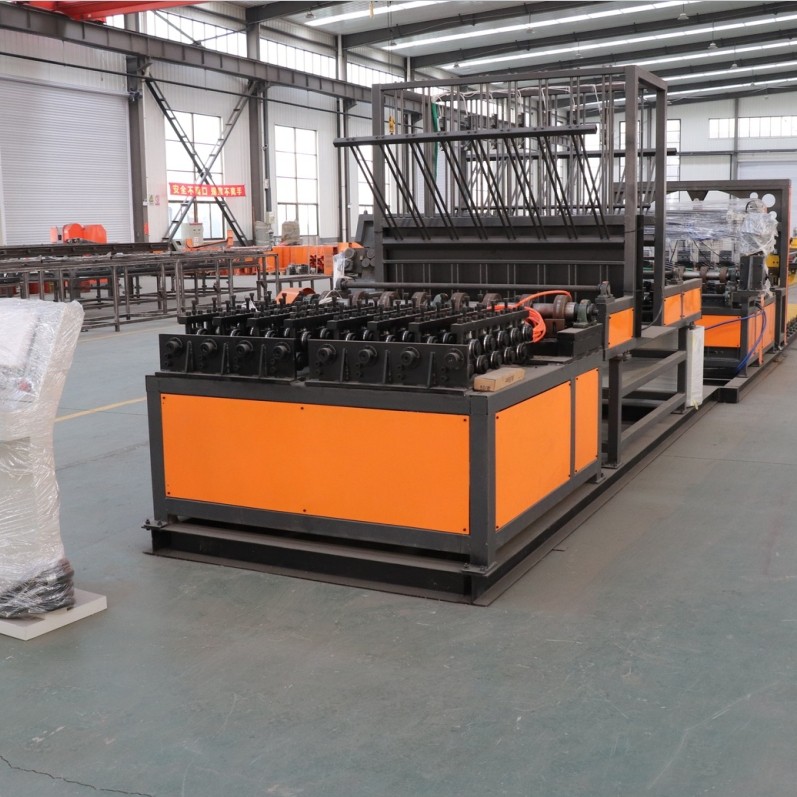

Automatic Wire Mesh Welder
1.Smart Control: Digital programming with touch screen or button operation.
2.Efficient Welding: One-press, separate welding with electric power.
3.Accurate Feeding: Stepper motor and brake motor ensure precise wire transport.
4.Automatic Wire Drop: Horizontal wire auto-feeding, vertical wire manual placement.
Product Introduction
The motor power of the tunnel wire mesh line welder adopts synchronous control technology. Fractional control welding and welding time are controlled by digital programming system. The input panel can be a touch screen or a button. The operation is more intelligent, rational, and has the characteristics of one pressing and separate welding.
The welding power is electric。The stepper motor hopper is used, the brake motor drives the trolley to transport the warp wire, and the stepper electric drive trolley to pull the net.
Warp wire and weft wire are cut off by straightening machine, vertical wire is placed manually, and horizontal wire is automatically dropped.
Parameters
Welding wire diameter range | 3.5-8.0mm |
Point of weld | 8个 |
Welding speed | 30-65 row/min，Speed adjustable |
Welding power | Stepping motor |
Power | 4kw With automatic brake |
Welding transformer | 120KVA*water-cooling |
Voltage | 380V |
Diagonal error of the mesh | <2mm |
Specification of the machine | 2.25*4.9*1.45m |
Weight | 2.0T |
Steel mesh welding machine, specialized in welding steel mesh used as support in high-speed rail, coal mine, construction and other fields, greatly improve the production efficiency of steel mesh, welded steel mesh is more smooth and firm.
Product Features
The welding speed is fast, the mesh size is accurate, the solder joint is reliable, instead of manual binding, manual welding is more energy saving, efficient and environmental protection. It can complete the welding requirements of various welding nets with different wire diameters and different mesh numbers with high quality. Compared with similar products, the welding range is larger, the welding quality is higher, the energy saving is more.
