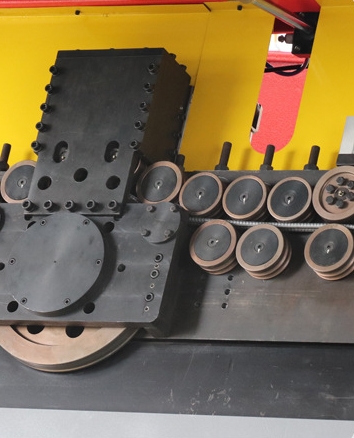

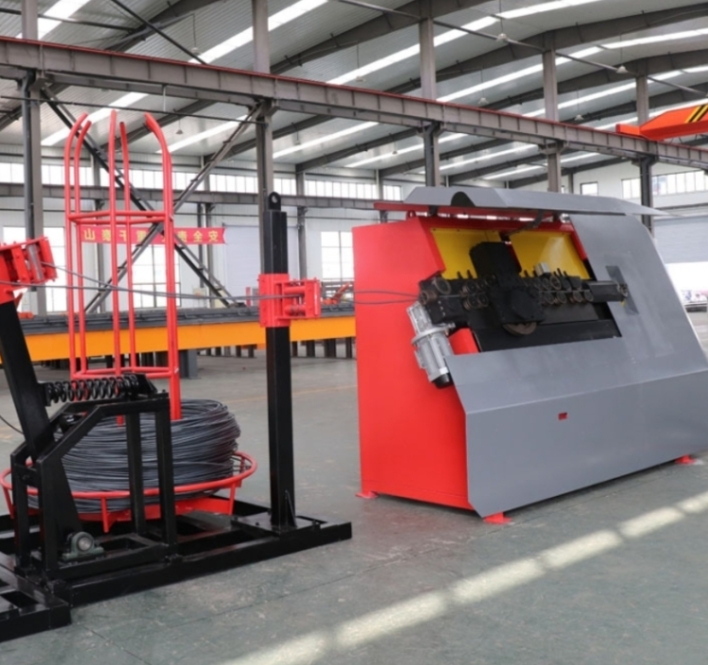

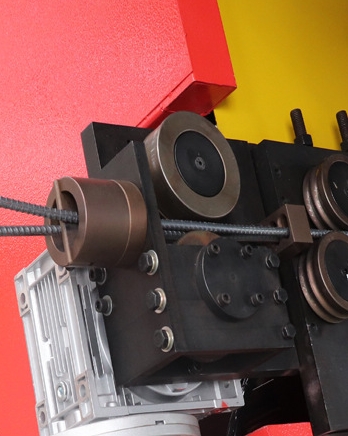

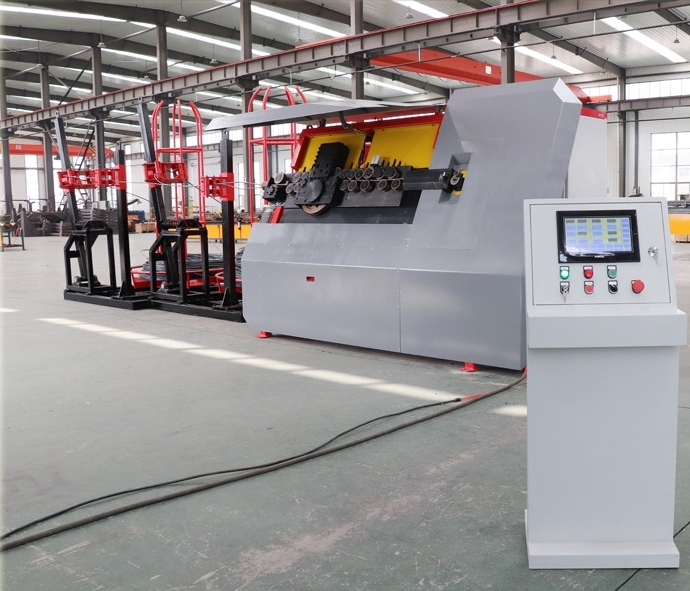

CNC Steel Bar Bending Machine
CNC Steel Bar Bending Machine integrates straightening, sizing, bending and cutting functions, suitable for stirrup, hook bar, and plate bar forming processing. It is classified according to the straightening method, including curve straightening type and straight straightening type, widely used in railways, highways, Bridges, airports, housing construction, steel processing plants and other fields.
Equipment Model：LYWG-13
Single Bar processing range: Φ6-12
Double Bars processing range: Φ6-10
CNC Steel Bar Bending Machine integrates straightening, sizing, bending and cutting functions, suitable for stirrup, hook bar, and plate bar forming processing. It is classified according to the straightening method, including curve straightening type and straight straightening type, widely used in railways, highways, Bridges, airports, housing construction, steel processing plants and other fields.
Parameters
Equipment Model：LYWG-13
Single line processing range | Φ6-12 |
Double lines processing range | Φ6-10 |
Straightening method | Curve straightening |
Maximum stirrup diagonal side length | 1500mm |
Maximum feed speed | 100m/min |
Maximum bending velocity | 1100°/s |
Length accuracy | ±1mm |
Angular accuracy | ±1° |
Equipment power | 34KW |
Number of operators | 1 Person |
Production efficiency | 1 ton/hour |
Occupied area | 3.3m×1.3m |

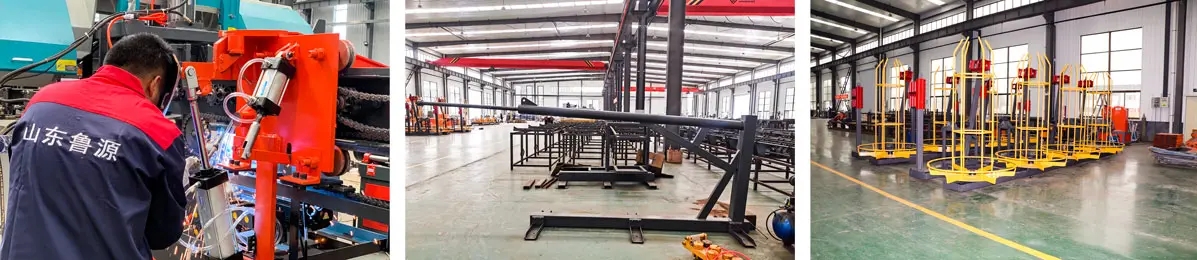

Factory Show
