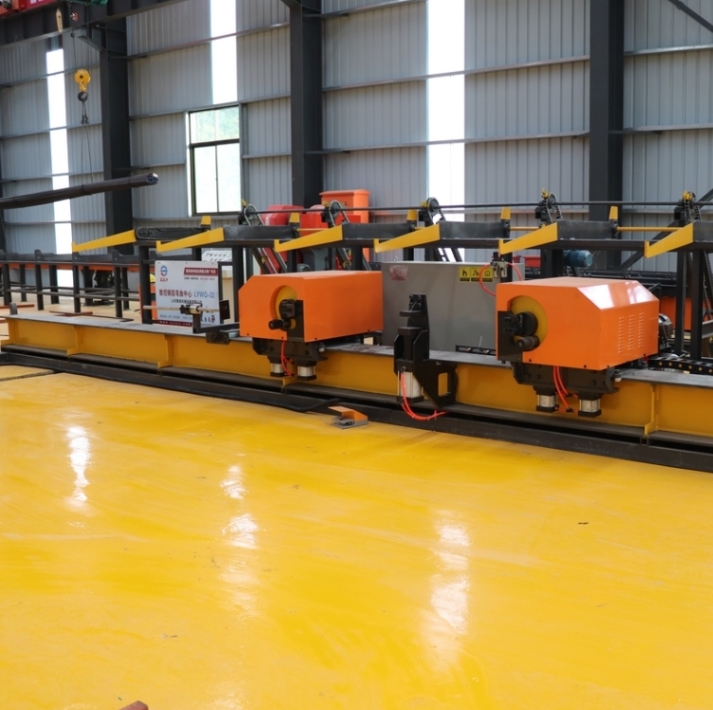

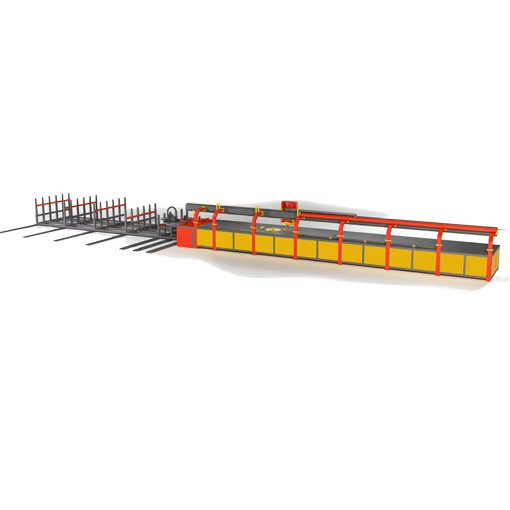

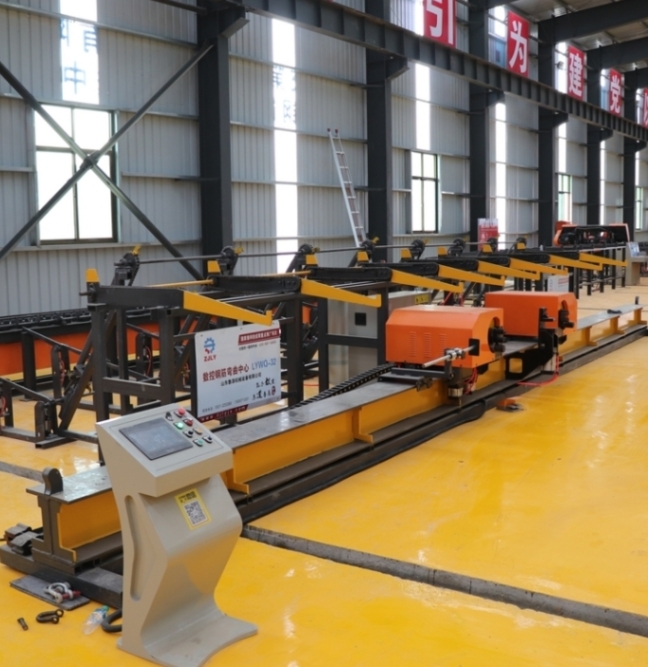

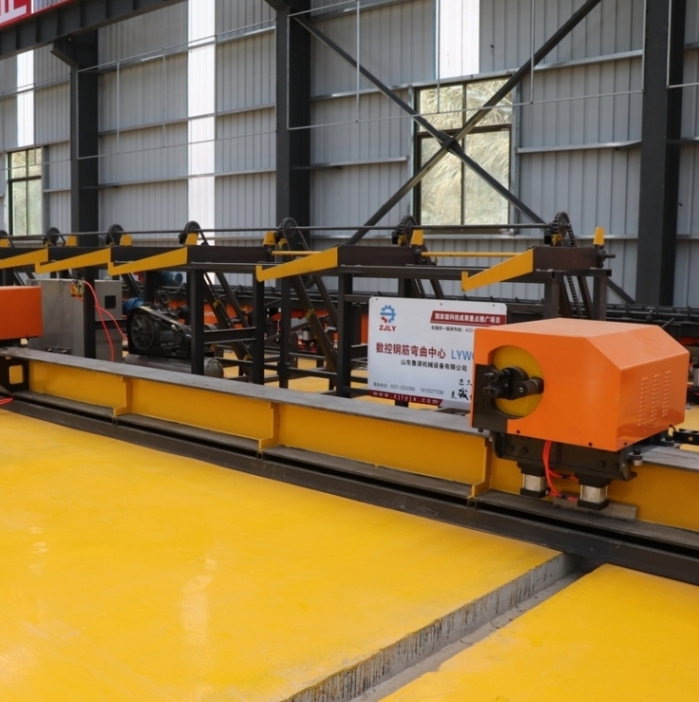

Automatic Steel Bar Bending Center
The raw materials are stored in multistage silos. Different specifications of bars automatic switch matching magnetic feeding mechanism to realize multiple steel bars forming at one time, and the efficiency is stable and efficient.
Equipment Model：LYZD-WQ32
Bar diameter (Single): 12-32mm
Bar diameter (Double): 12-25mm
Raw material storage method: Compartmentalized bunker truck
Raw material loading method: Magnetic type
The automatic steel bar bending center are stored in multistage silos. Different specifications of bars automatic switch matching magnetic feeding mechanism to realize multiple steel bars forming at one time, and the efficiency is stable and efficient.
Parameters
Equipment Model：LYZD-WQ32
Bar diameter (Single) | 12-32mm |
Bar diameter (Double) | 12-25mm |
Raw material storage method | Compartmentalized bunker truck |
Raw material loading method | Magnetic type |
Cutting method of raw material | Hydraulic |
Hydraulic pressure | ≤16MPa |
Gas pressure | ≤0.8MPa |
Rated power of equipment | 24KW |
Number of operators | 1 person |
Production efficiency | 24 tons/10 hours |
Occupied area | 24m×6m |

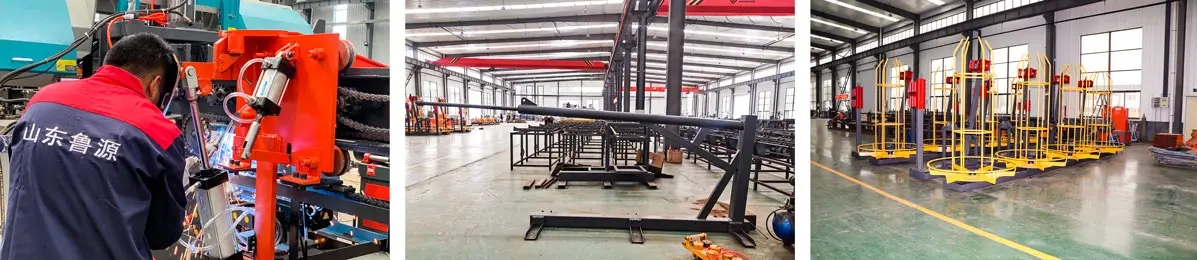

Factory Show
Honors and Qualifications
