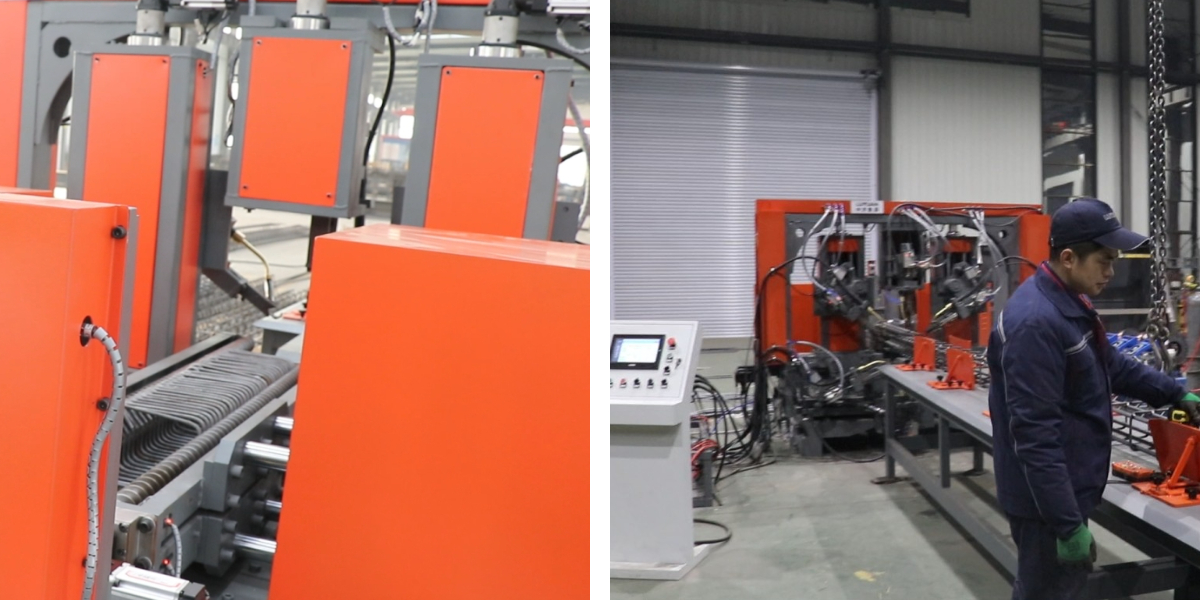

Automatic Cage Assembly Machine
1.Automation: Fully automates the welding and forming of special-shaped stirrup steel cages, replacing manual binding.
2.Customizable Spacing: Minimum main bar spacing of 100mm, with options for custom configurations to meet specific requirements.
3.High Efficiency: Streamlines production, improving speed and consistency compared to manual methods.
4.Precision: Ensures accurate and reliable welding for high-quality steel cages.

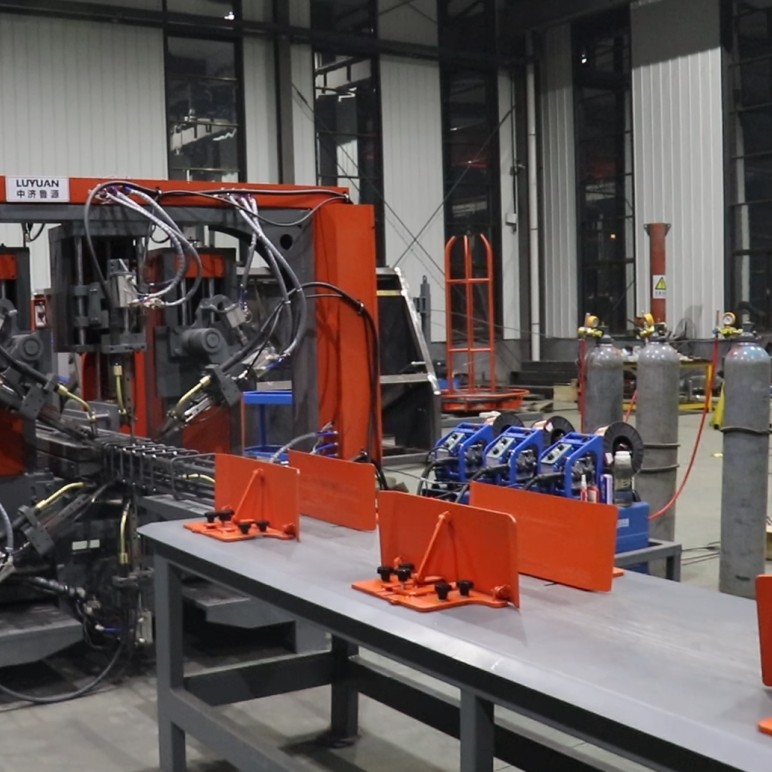

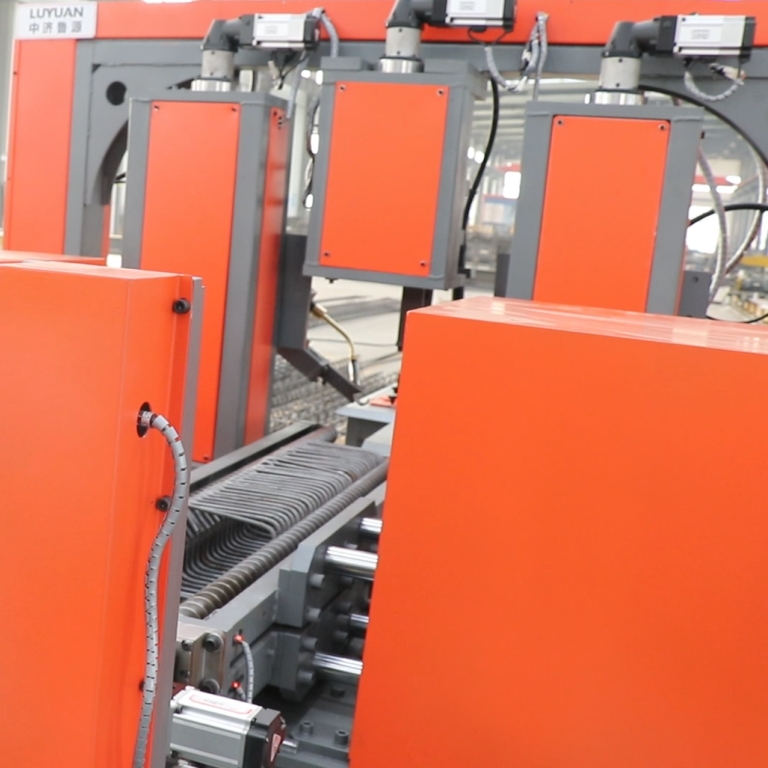

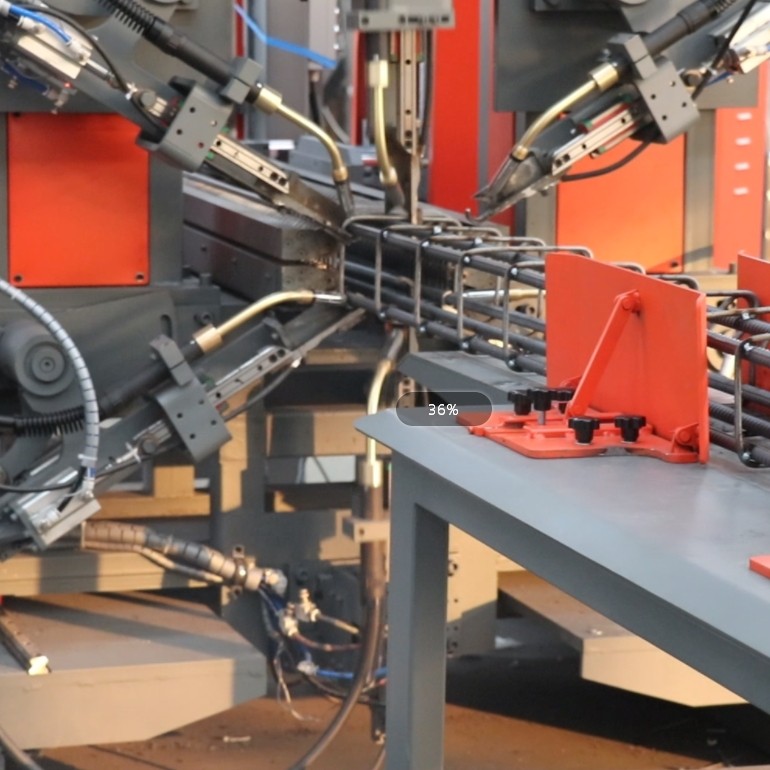

Product Description
The automatic steel bar cage assembly machine is an advanced automatic welding and forming equipment for special-shaped stirrup steel cages. It serves as a perfect alternative to manual binding of stirrup cages. The minimum main bar spacing can be 100mm, with the option for customization based on customer requirements.
Parameters
Cage length | 6m，Customizable |
Winding bar type | Stirrup |
Main bar type | Bar |
Main bar number | 3-6pc, Customizable |
Diameter of main bar | 10-20mm, Customizable |
Stirrup diameter | 6-12mm, Customizable |
Stirrup profile | Triangles, rectangles, special shapes |
Stirrup spacing | ≥30mm |
Minimum distance between main bars | 100mm |
Welding manner | Gas shielded welding |
Gas pressure | ≤0.8MPa |
Power | 14.5KW |
Welding power | 100KW |
Number of operators | 1 person |
Production efficiency | 24 sections/10h，6m/section |
Occupied area | 16m×3m |

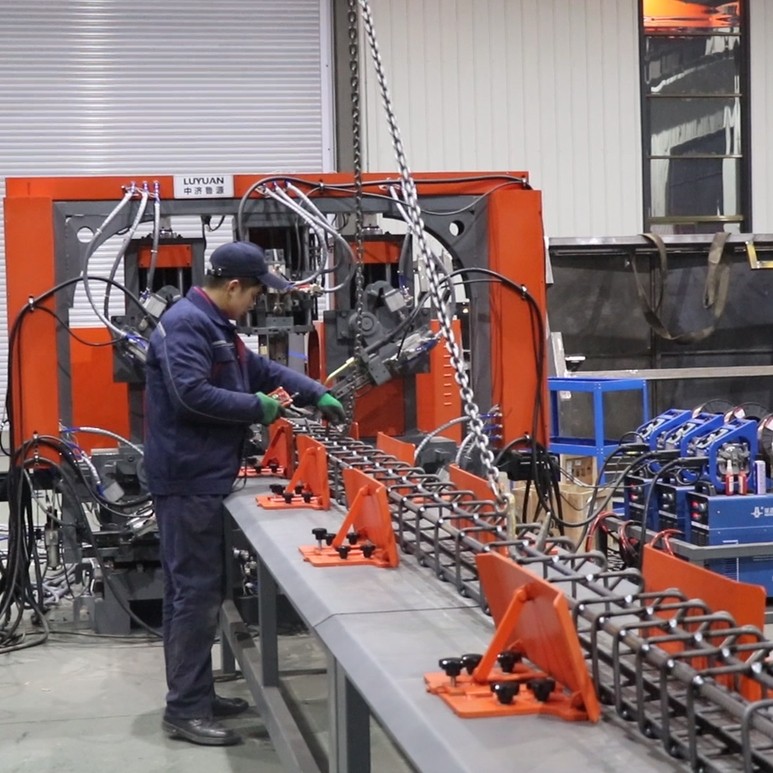

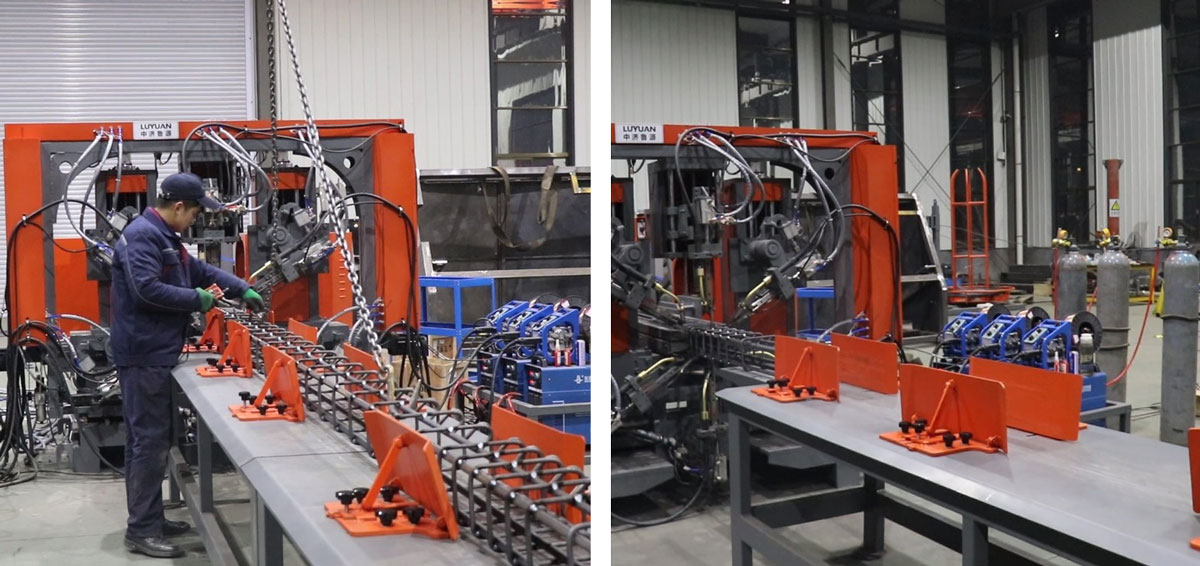

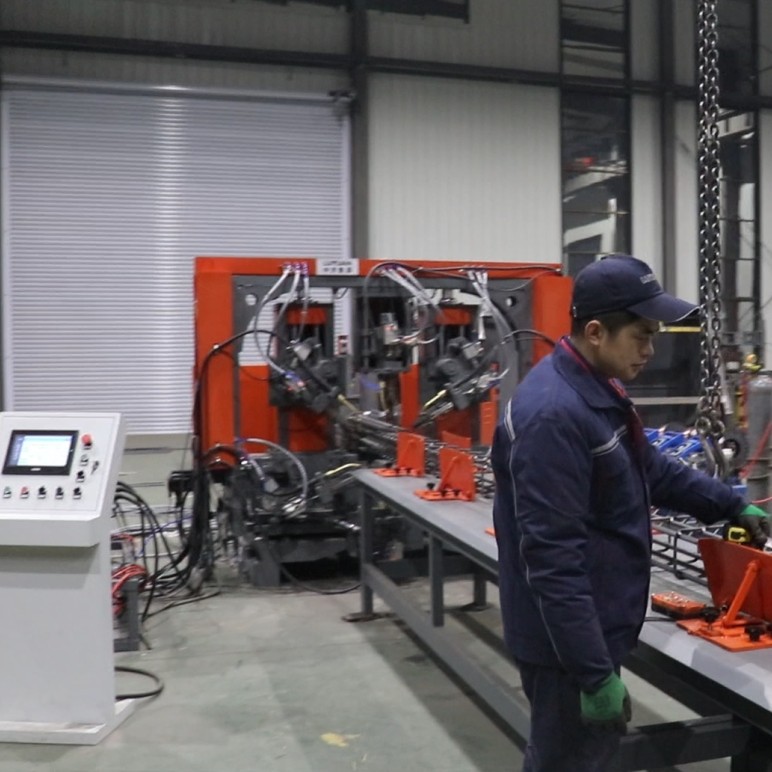

Operation Process
1. Start the equipment: according to the requirements of the equipment operation manual, correctly start the steel cage forming machine to ensure the normal operation of the equipment.
2. Adjust the parameters: according to the production requirements, adjust the parameters of the equipment, such as welding current, speed, etc., to ensure the quality of the steel cage.
3. Start production: Put the prepared steel bars into the equipment and operate according to the requirements to form the steel cage.
Quality Control
1. Check the product: After the production is completed, check the quality of the steel cage in time, such as whether the welding is strong and whether the size meets the requirements.
2. Quality records: Record each batch of steel bars produced, including production date, production quantity, quality inspection results, etc., for verification.
3. Troubleshooting: If a device fault or product quality problem is found during operation, stop the machine and handle it in time, and record the fault cause and troubleshooting process.

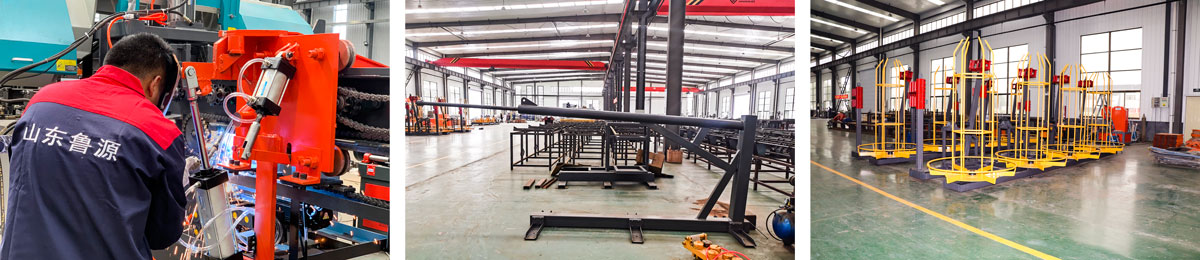

Factory Show

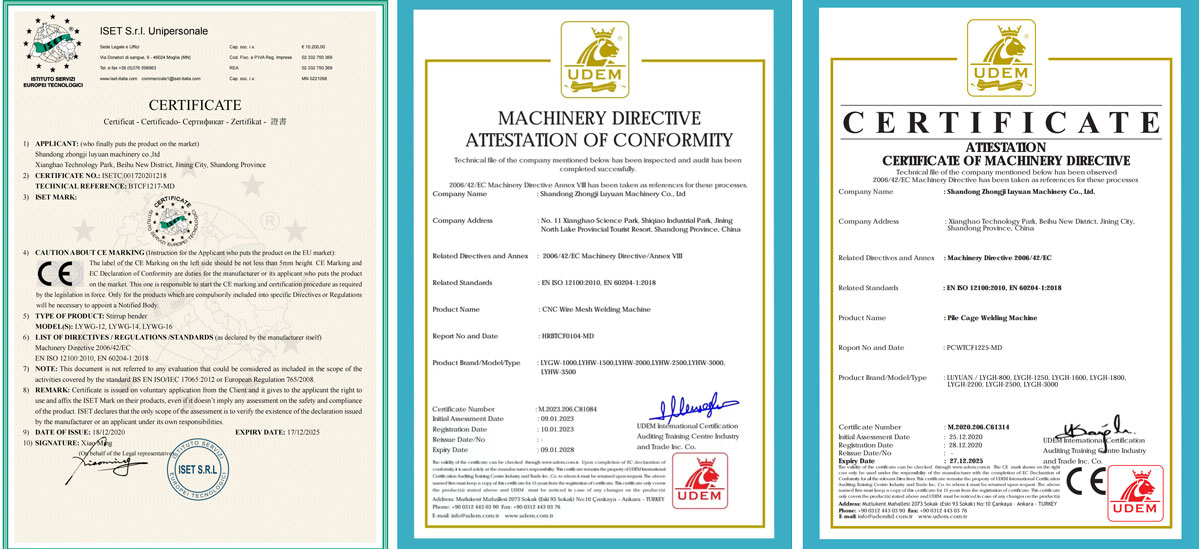

Honors and Qualifications
