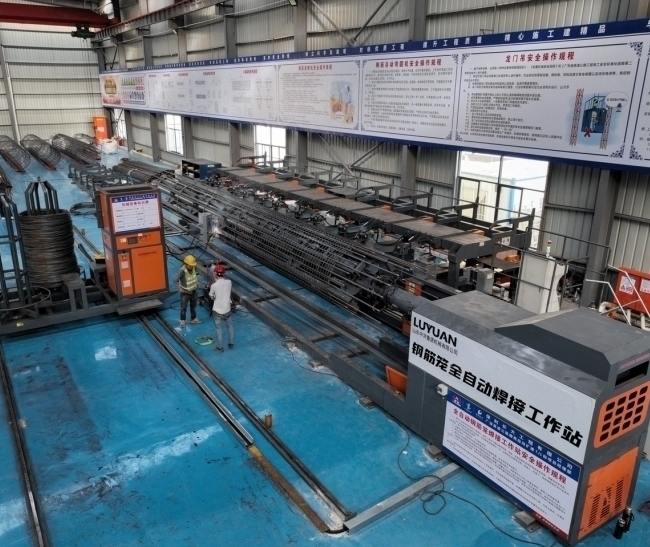

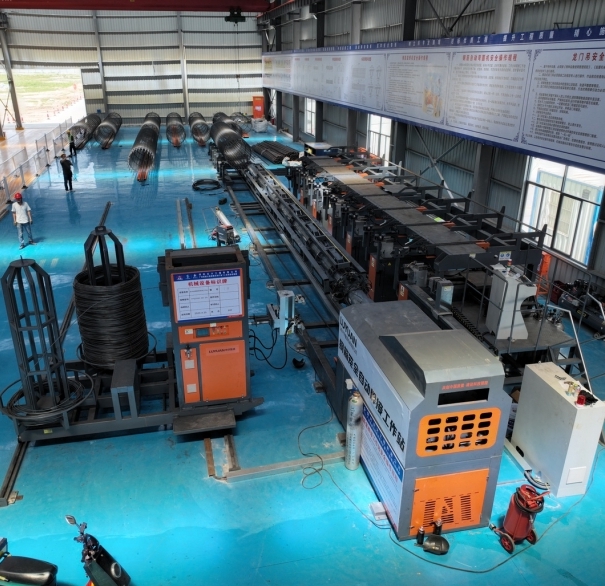

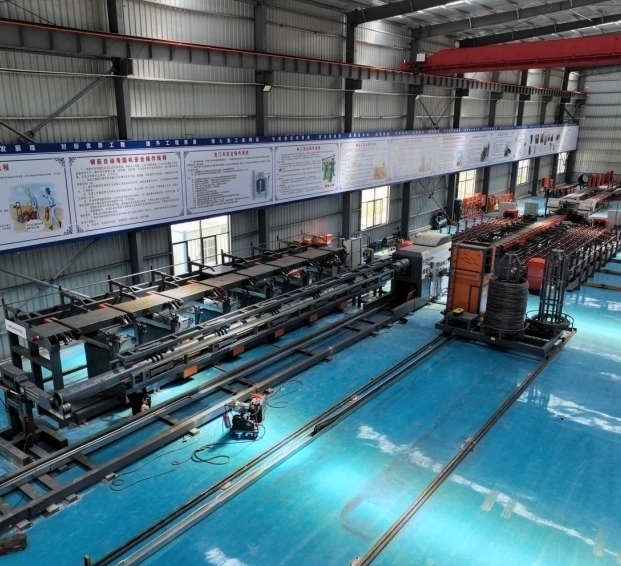

Automatic Steel Bar Cage Forming Workstation
Automatic Steel Bar Cage Forming Workstation is the leading industry automatic steel cage production equipment with continuous innovation and optimization. The main bar and inner ring are welded automatically. The welds are inspected 100% automatically. It automatically memorizes and matches the length and position of the main bar. The winding bar and main bar are automatically welded by the double guns. Different cage sizes are automatically switched. The steel cage is automatically released and transferred. It is intelligent, stable and efficient.
Equipment Model：LYZD-GJL2500
Steel cage pile diameter: Φ700~2500
Cage length: 12m
Diameter of main bar of steel cage: Φ18~40
Diameter of winding bar of steel cage: Φ8~16
Automatic Steel Bar Cage Forming Workstation is the leading industry automatic steel cage production equipment with continuous innovation and optimization. The main bar and inner ring are welded automatically. The welds are inspected 100% automatically. It automatically memorizes and matches the length and position of the main bar. The winding bar and main bar are automatically welded by the double guns. Different cage sizes are automatically switched. The steel cage is automatically released and transferred. It is intelligent, stable and efficient.
Parameters
Steel cage pile diameter | Φ700~2500 |
Cage length | 12m |
Diameter of main bar of steel cage | Φ18~40 |
Diameter of winding bar of steel cage | Φ8~16 |
Steel cage main bar type | Single/Double (Double main bar is customized) |
Steel cage winding bar type | Single/Double |
Distance between two winding bars | ≤300mm |
Hydraulic pressure | ≤16MPa，Gas pressure：≤0.8MPa |
Equipment power | Power 30KW，Welding 100KW |
Number of operators | 1 Person |
Production efficiency | 13sections/10h，12m/section |
Occupied area | 30m×8.5m |
