Automatic Pile Cage Making Machine Manufacturer

With years of experience in manufacturing advanced rebar processing equipment, we are a professional Automatic Reinforcement Cage Making Machine Manufacturer providing high-performance solutions for global construction companies, foundation contractors, and precast concrete manufacturers.

Our automatic reinforcement cage making machine is designed to produce high-quality steel reinforcement cages efficiently and accurately. Compared with traditional manual fabrication methods, this CNC-based system significantly improves production efficiency, welding precision, and labor utilization.

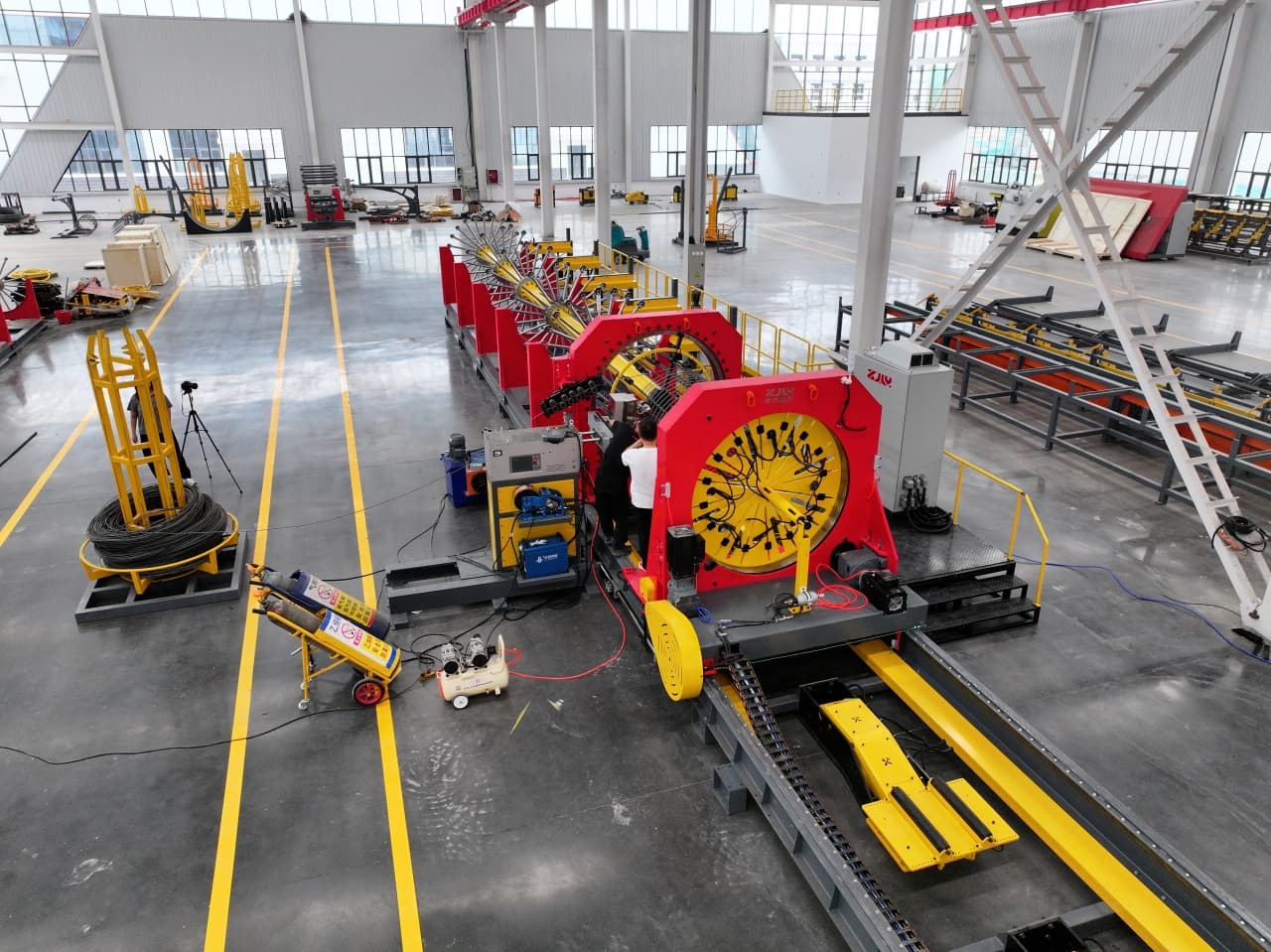

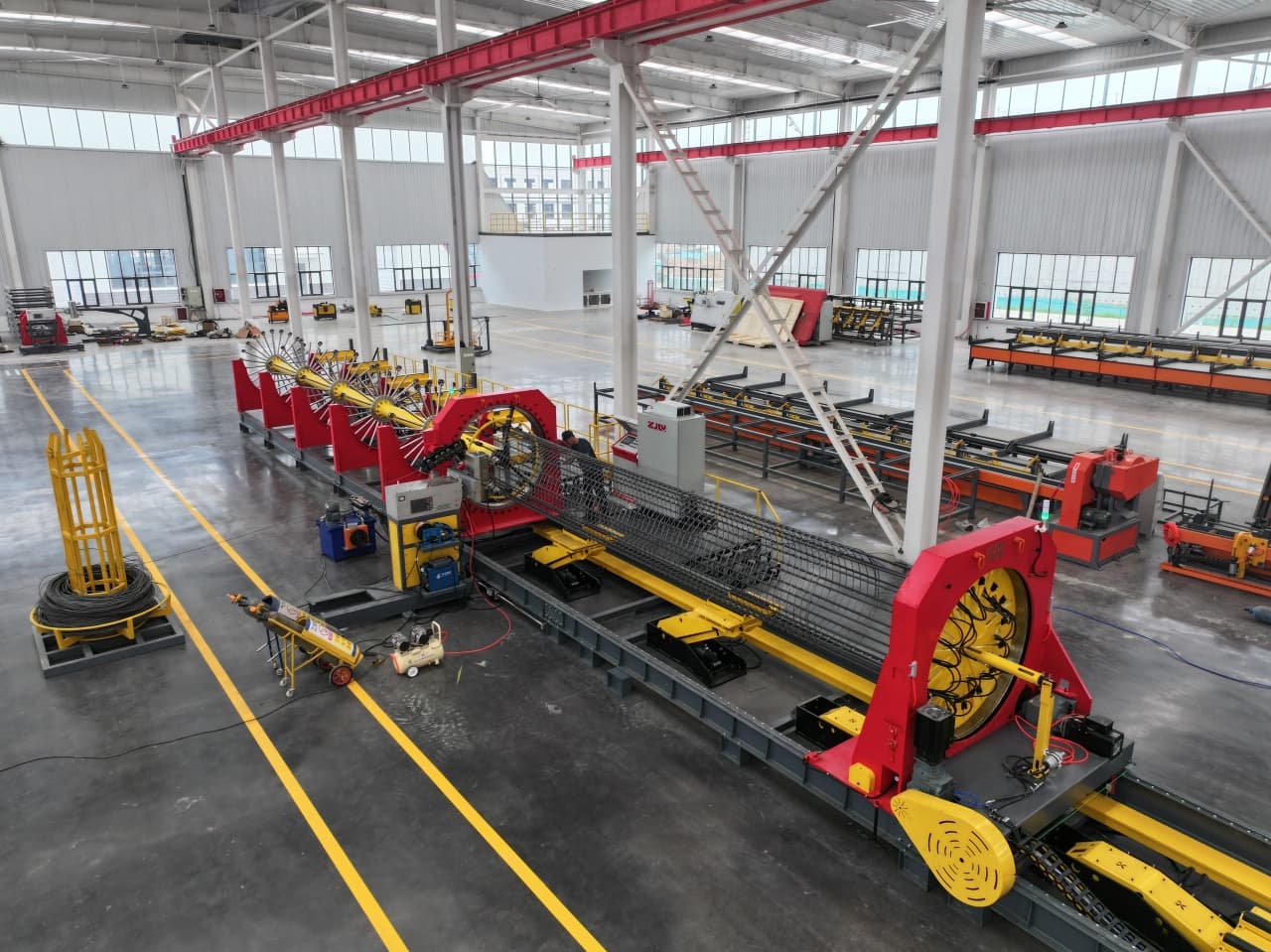

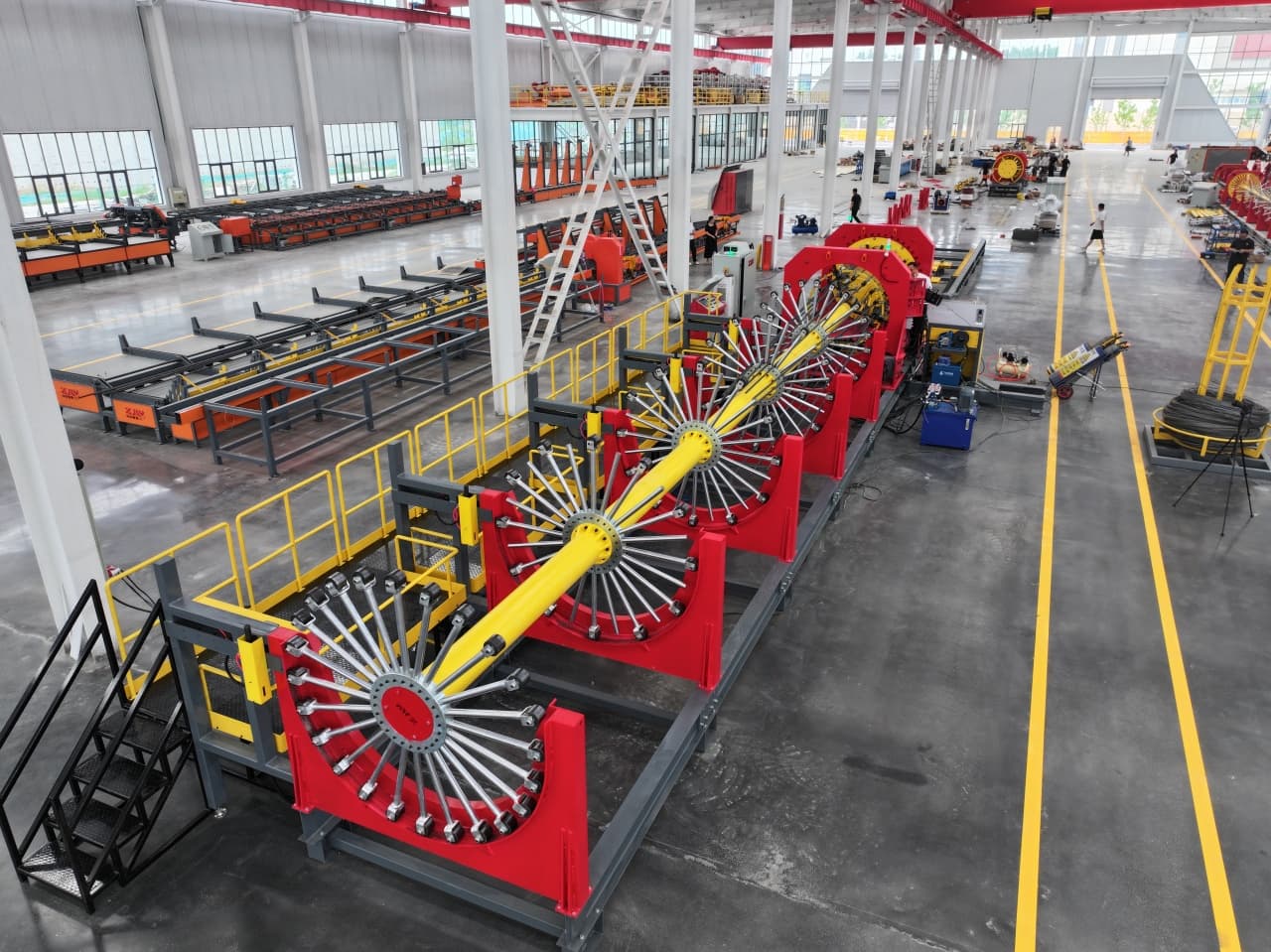

The machine integrates automatic wire feeding, longitudinal bar positioning, spiral wire winding, welding, and cage forming processes into one complete production line. It is widely used in piling projects, bridge construction, railway engineering, tunnel projects, and large-scale infrastructure applications.

As a reliable Reinforcement Cage Welding Machine Manufacturer, we focus on delivering customized solutions, stable machine performance, and professional after-sales service to customers worldwide.

Key Features

1. Fully Automatic Production Process

The automatic reinforcement cage making machine completes the entire production process automatically, including steel bar feeding, spacing adjustment, spiral reinforcement welding, and cage forming. This reduces manual operation requirements and improves production consistency.

2. High Precision CNC Control System

Equipped with an advanced CNC control system, the machine ensures accurate reinforcement spacing and stable cage dimensions. Operators can easily adjust parameters according to different project requirements.

3. High Production Efficiency

Compared with traditional manual fabrication, the automatic reinforcement cage welding machine can increase production efficiency several times, making it ideal for large-scale piling and infrastructure projects.

4. Strong Welding Performance

The advanced welding system provides strong and uniform welding points, ensuring excellent structural strength and durability of reinforcement cages.

5. Flexible Cage Diameter Adjustment

The machine supports different reinforcement cage diameters and lengths, allowing customers to manufacture various types of pile cages according to construction requirements.

6. Low Labor Cost & Easy Operation

The automated design reduces dependence on skilled workers and allows one operator to manage the production process efficiently.

Technical Specifications

Parameter Specification

Machine Model Automatic Reinforcement Cage Making Machine

Cage Diameter Range 300-3000 mm

Cage Length 1-24 m (Customizable)

Longitudinal Bar Quantity 6-30 pcs

Main Rebar Diameter 12-40 mm

Spiral Wire Diameter 5-16 mm

Welding Method Resistance Welding

Production Speed 20-40 m/h

Control System PLC + Touch Screen

Operation Mode Automatic CNC Control

Power Supply Customized According to Country

Application Piling, Bridge, Railway, Tunnel Construction

Applications

1. Piling Foundation Projects

Automatic reinforcement cage making machines are widely used in bored pile construction, helping contractors produce high-quality pile cages efficiently.

2. Bridge Construction

Used for manufacturing reinforcement cages required for bridge foundations and supporting structures.

3. Railway and Highway Projects

Large infrastructure projects require stable and efficient reinforcement cage production solutions.

4. Tunnel Engineering

The machine provides reliable reinforcement cage production for tunnel support structures.

5. Precast Concrete Industry

Used for manufacturing reinforcement cages for precast concrete components.

Why Choose Us

Professional Reinforcement Cage Machine Manufacturer

We have extensive experience in designing and manufacturing automatic rebar processing equipment. Our machines are exported to multiple international markets.

Customized Solutions

Different countries and projects have different requirements. We provide customized machine configurations according to cage diameter, production capacity, and power standards.

Strict Quality Control

Every machine undergoes professional inspection before shipment, including welding tests, electrical system checks, and operation testing.

Complete Technical Support

We provide installation guidance, operation training, spare parts supply, and lifetime technical support.

Competitive Factory Price

As a direct manufacturer, we provide cost-effective solutions without compromising quality.

Application Case

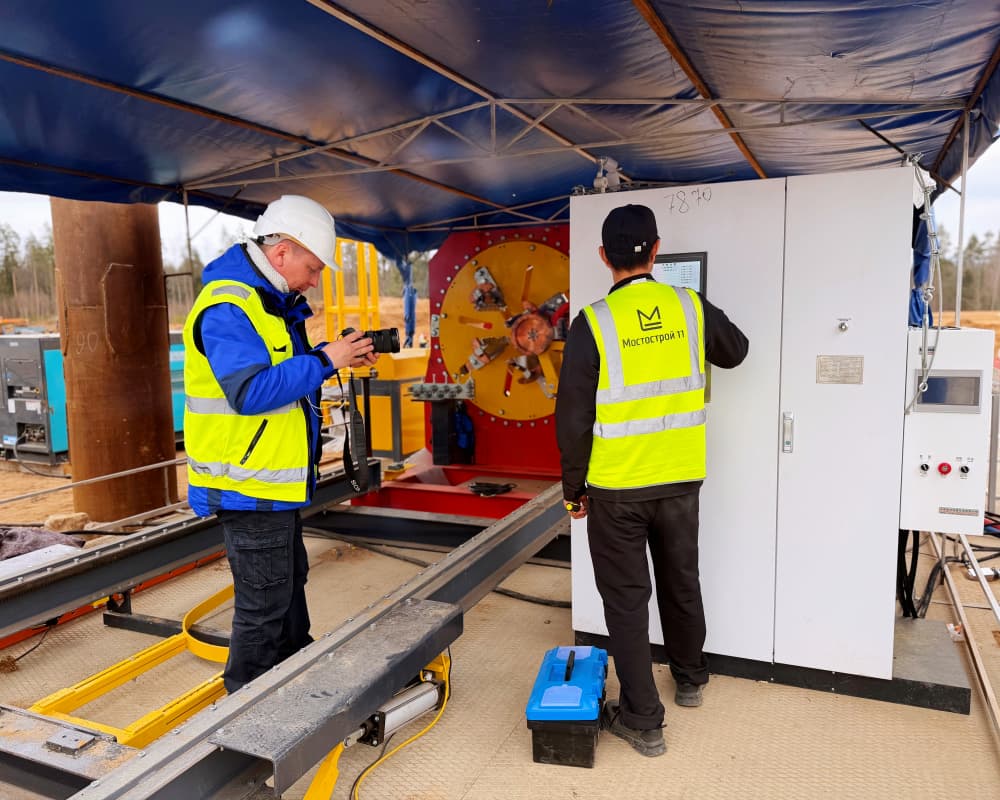

Automatic Reinforcement Cage Making Machine Successfully Delivered to Russia Piling Contractor

In 2025, our company supplied an automatic reinforcement cage making machine to a Russian foundation engineering contractor.

The customer was facing challenges including high labor costs, slow manual cage fabrication speed, and inconsistent welding quality.

After installing our CNC reinforcement cage machine, the customer achieved:

Production efficiency increased by more than 300%

Reduced labor requirements

Improved reinforcement cage accuracy

Stable production for large diameter pile cages

The machine has been successfully applied in highway bridge foundation projects and continues to operate reliably.

FAQ

Q1: What is an automatic reinforcement cage making machine?

It is a CNC automatic machine used to manufacture reinforcement cages for piling and construction projects. It automatically completes rebar feeding, welding, and cage forming.

Q2: What is the production capacity of the machine?

The production speed depends on cage diameter, reinforcement specifications, and machine configuration. Normally, it can produce 20-40 meters of reinforcement cage per hour.

Q3: Can the machine produce different cage diameters?

Yes. The machine supports adjustable cage diameters and customized production requirements.

Q4: What is the difference between manual fabrication and automatic cage welding?

Automatic production provides higher efficiency, better accuracy, and lower labor costs compared with manual fabrication.

Q5: Do you provide installation and training?

Yes. We provide installation guidance, operation training, and technical support.

Q6: What information is needed for quotation?

Customers should provide cage diameter, length, steel bar specifications, production capacity requirements, and local power supply information.

Q7: Can you customize the machine according to my project?

Yes. We provide customized reinforcement cage manufacturing solutions according to different construction requirements.
