Automatic Reinforcement Cage Welding Center: The Core Intelligent Equipment for Efficient and Precise Steel Cage Fabrication

The Automatic Reinforcement Cage Welding Center is mainly applicable to the fabrication of reinforcement cages for foundations in subways, bridges, building construction, airports, highways, and other major projects. It is particularly suitable for processing medium and large-sized reinforcement cages with high precision and efficiency requirements, effectively solving the problems of low efficiency and poor quality stability in traditional processing modes. What distinguishes this equipment from ordinary welding machines is its integrated design concept, which covers the entire lifecycle of reinforcement cage fabrication from raw material feeding to finished product unloading, minimizing human intervention and maximizing processing efficiency and quality.

The equipment is composed of four core systems: the main reinforcement automatic feeding system, the main reinforcement detection and positioning welding system, the reinforcement cage welding system, and the reinforcement cage unloading system. Each system is independently optimized and collaborates seamlessly, forming a highly efficient and stable production line.

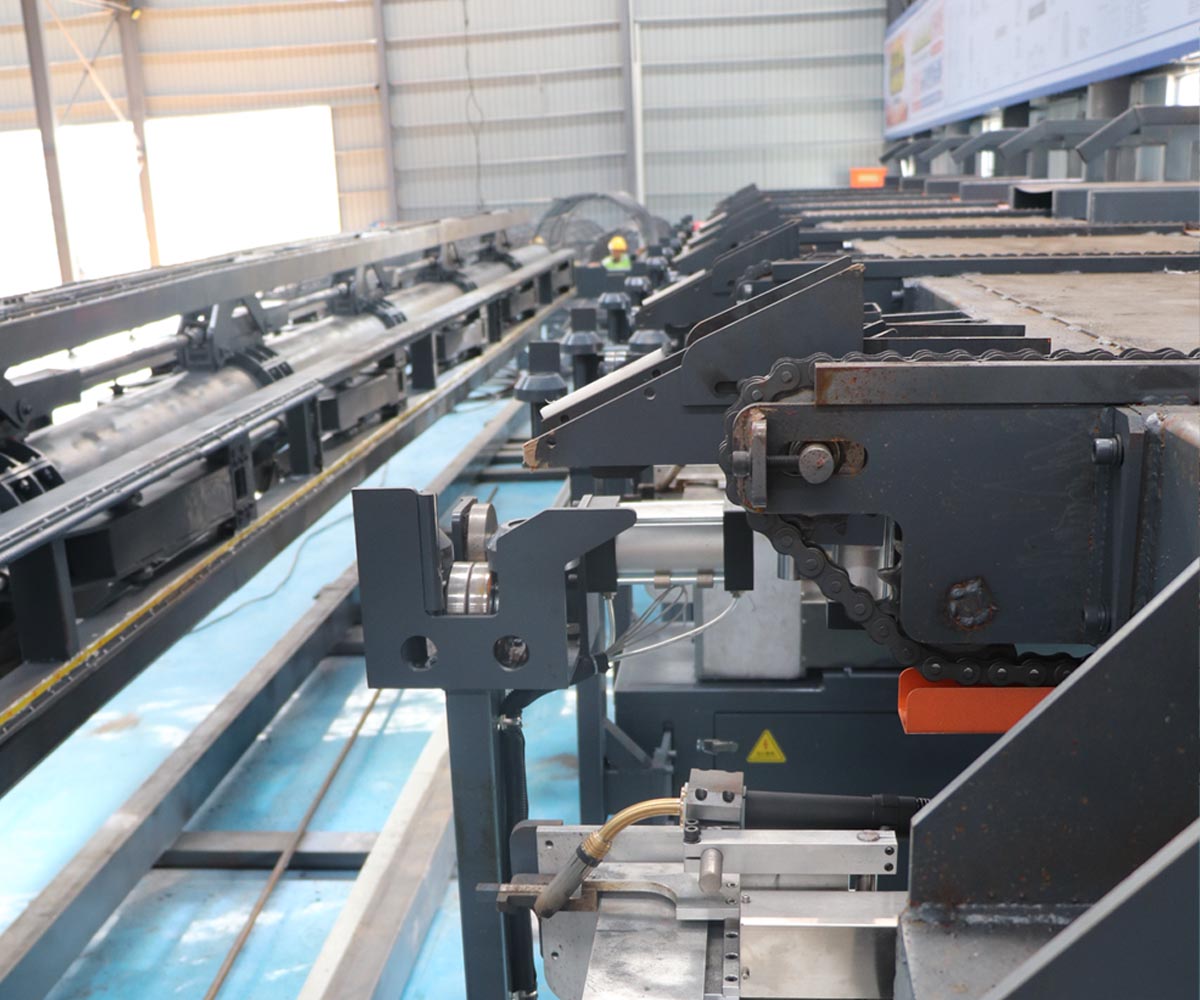

The main reinforcement automatic feeding system is a key part of ensuring continuous processing. It adopts a plate-type feeding mechanism with automatic straightening and length calibration functions, which can adapt to main reinforcements of different specifications ranging from Φ12mm to Φ40mm. The system can automatically adjust the feeding speed and spacing according to the processing requirements, realizing the orderly and accurate feeding of main reinforcements without manual arrangement. Compared with the traditional manual feeding mode that requires 2-3 workers to cooperate, this system not only saves labor costs but also avoids feeding errors caused by manual operation, laying a solid foundation for subsequent precise welding.

The main reinforcement detection and positioning welding system is the core guarantee of welding quality. Equipped with high-precision laser sensors and PLC numerical control systems, it can automatically detect the position of main reinforcements in real time, with a positioning accuracy of ±2mm. Before welding, the system will automatically calibrate the position of each main reinforcement to ensure uniform spacing, which fully meets the requirements of the *Code for Construction Quality Acceptance of Concrete Structure Engineering*. During the welding process, the system adopts adaptive welding current and voltage adjustment technology, which can automatically adjust welding parameters according to the thickness and material of the steel bar, ensuring that each welding point is firm and full. It is worth mentioning that the welding time of a single main reinforcement is less than 35 seconds, which is 5-8 times higher than the manual welding efficiency.

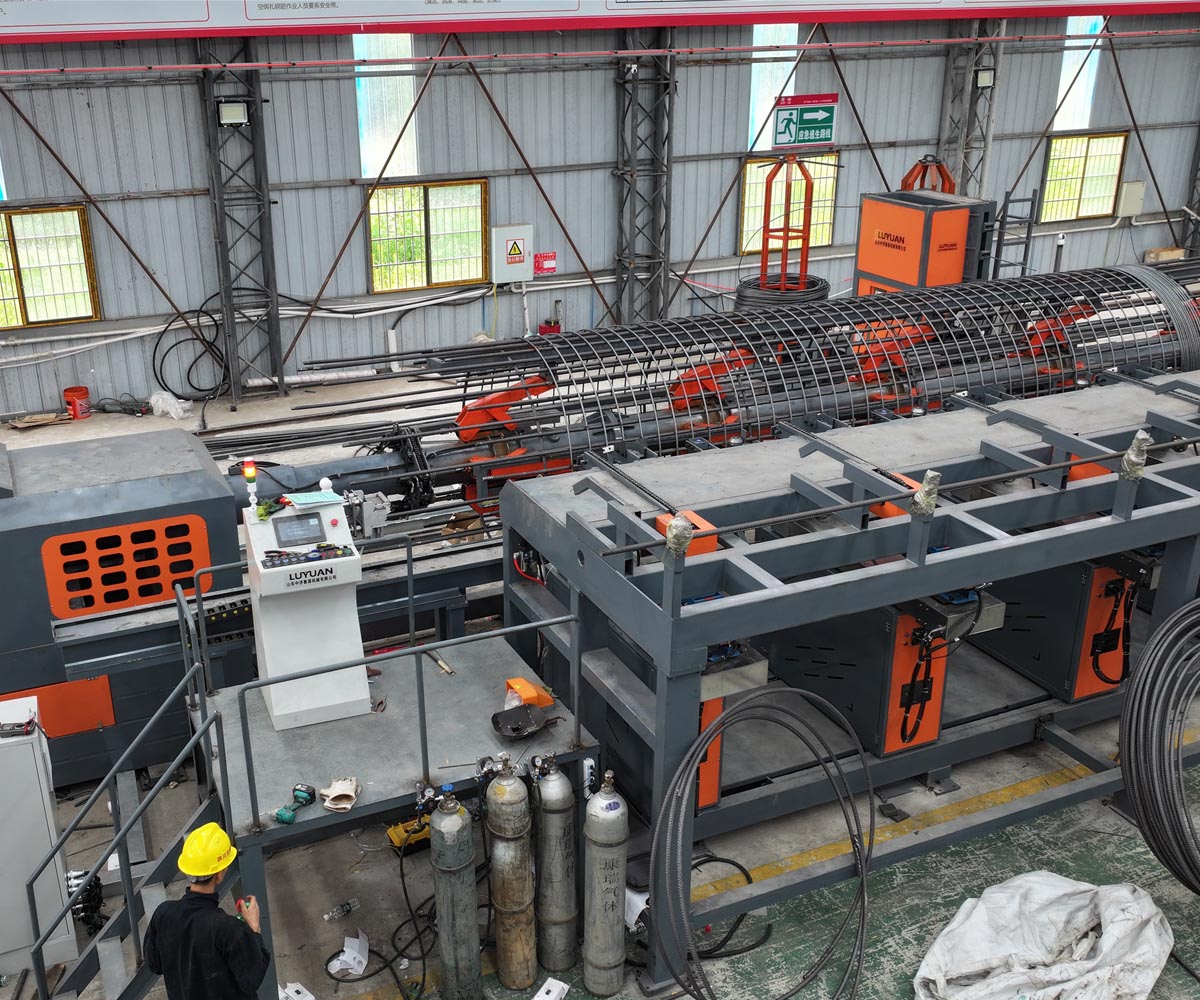

The reinforcement cage welding system adopts twin-wire synchronous welding technology, which greatly improves welding efficiency while ensuring welding quality. The welding time of each welding point can be flexibly configured and saved according to different process requirements. For example, for high-strength steel bars that require deeper weld penetration, the welding time can be appropriately extended; for ordinary steel bars, the standard welding time can be used to save energy consumption. This personalized parameter setting function makes the equipment applicable to various processing scenarios. In practical applications, the equipment can complete the welding of a 9-12 meter reinforcement cage skeleton in only 20 minutes, and the entire winding and welding process of the reinforcement cage can be completed in 25 minutes. In contrast, traditional manual welding of the same specification reinforcement cage requires 6-8 workers to work continuously for 4-5 hours, and the efficiency is increased by more than 10 times.

The reinforcement cage unloading system adopts an automatic lifting and conveying mechanism, which can automatically lift the finished reinforcement cage to the designated position after the welding is completed, realizing seamless connection between processing and storage. The system is equipped with a buffer device to avoid collision and damage to the finished product during unloading, ensuring the integrity of the reinforcement cage. At the same time, the system can automatically count the number of finished products, which is convenient for enterprise production management.

In addition to the four core systems, the equipment also has many humanized designs. It is equipped with a 10-inch high-definition touch screen, and the operation interface is intuitive and simple. New operators can master the basic operation after 2 hours of training. The system has real-time fault early warning and self-diagnosis functions, which can automatically identify problems such as welding current abnormalities and feeding jams, and issue sound and light alarms in time, reminding workers to handle them. This not only reduces the difficulty of operation but also improves the safety and stability of equipment operation.

The advantages of the Automatic Reinforcement Cage Welding Center are particularly prominent in practical applications. In a subway foundation project in a certain city, the equipment was used to process 12-meter reinforcement cages. The daily output reached 20-25 sections, which was 8-10 times that of manual processing. The welding pass rate of the finished product reached 99.8%, and no quality problems occurred during the subsequent inspection. The use of the equipment not only shortened the project construction period by 30% but also saved more than 500,000 yuan in labor costs for the construction enterprise.

In terms of maintenance, the equipment adopts a modular design, and each core component can be disassembled and replaced independently, which is convenient for daily maintenance and repair. The key components such as welding electrodes and servo motors are made of high-quality materials, with a service life of more than 300,000 times, reducing the frequency of component replacement. The company provides a 2-year warranty for core components and has a professional after-sales service team that can provide on-site maintenance services within 48 hours, ensuring the continuous and stable operation of the equipment.

As an intelligent equipment with independent intellectual property rights, the Automatic Reinforcement Cage Welding Center has filled the gap in the field of high-efficiency and automatic reinforcement cage welding in China. It not only improves the processing efficiency and quality of reinforcement cages but also promotes the transformation and upgrading of the steel bar processing industry towards intelligence and industrialization. In the future, with the continuous development of infrastructure construction, the equipment will be widely used in more fields, contributing more to the high-quality development of the construction industry.
