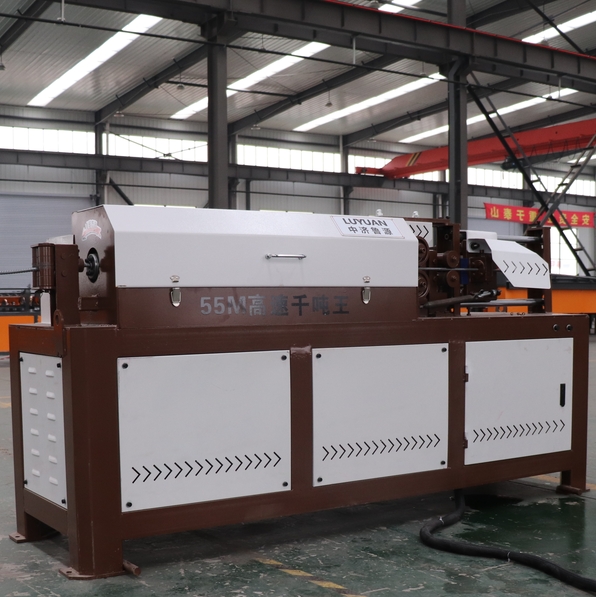

Steel Bar Straightener
Steel Bar Straightener is mainly used in construction sites, processing plants, etc.. It can straighten 4~12mm round steel, 4~10mm rebar and other wire.
It cut off automatically through the hydraulic numerical control device, and then use the hoop bending machine or other tools to bend the straightened steel bar into the required shape, the fastest discharge 35m/min.
Single motor (7.5kw), double tubing. It is recommended that the amount of steel reinforcement is not large, small site or processing plant.
Intelligent operating system. If you know the number 123, you can use it.
Electronic digital display of dimensions without mechanical measurement.
Multiple batches of input length and quantity at the same time, power off memory, reuse, efficient and convenient.
Lower straightening assembly, smooth operation, easy maintenance.
Dual motors control the straightening and hydraulic system respectively, and the failure rate is small.
Nc measuring length, small error.
Technical parameters
Motor power | 7.5KW-4P |
Straightening speed | 38m/min |
Length range | 0.5~99m |
Cut-off error | ±8mm |
Straightening diameter | Q235, 5~12MM |
External dimension | 1300*530*830mm |
Total weight | 248kg |
Factory Show
Honors and Qualifications
