Using imported servo motors and high-resolution magnetic grid rulers, achieving a length accuracy of ± 1mm and an angle accuracy of ± 0.1 degrees, with some models achieving a repeat positioning accuracy of ± 3pm
2. Intelligent programming and graphical operation
Supports touch screen or industrial computer control, can pre store more than 400 graphics (such as square, diamond, U-shaped hook), and has two-dimensional graphics programming and simulation functions, with intuitive operation
3. The adaptive compensation and fault diagnosis system can automatically compensate for angle deviation based on material characteristics, and improve reliability through fault recognition and alarm functions

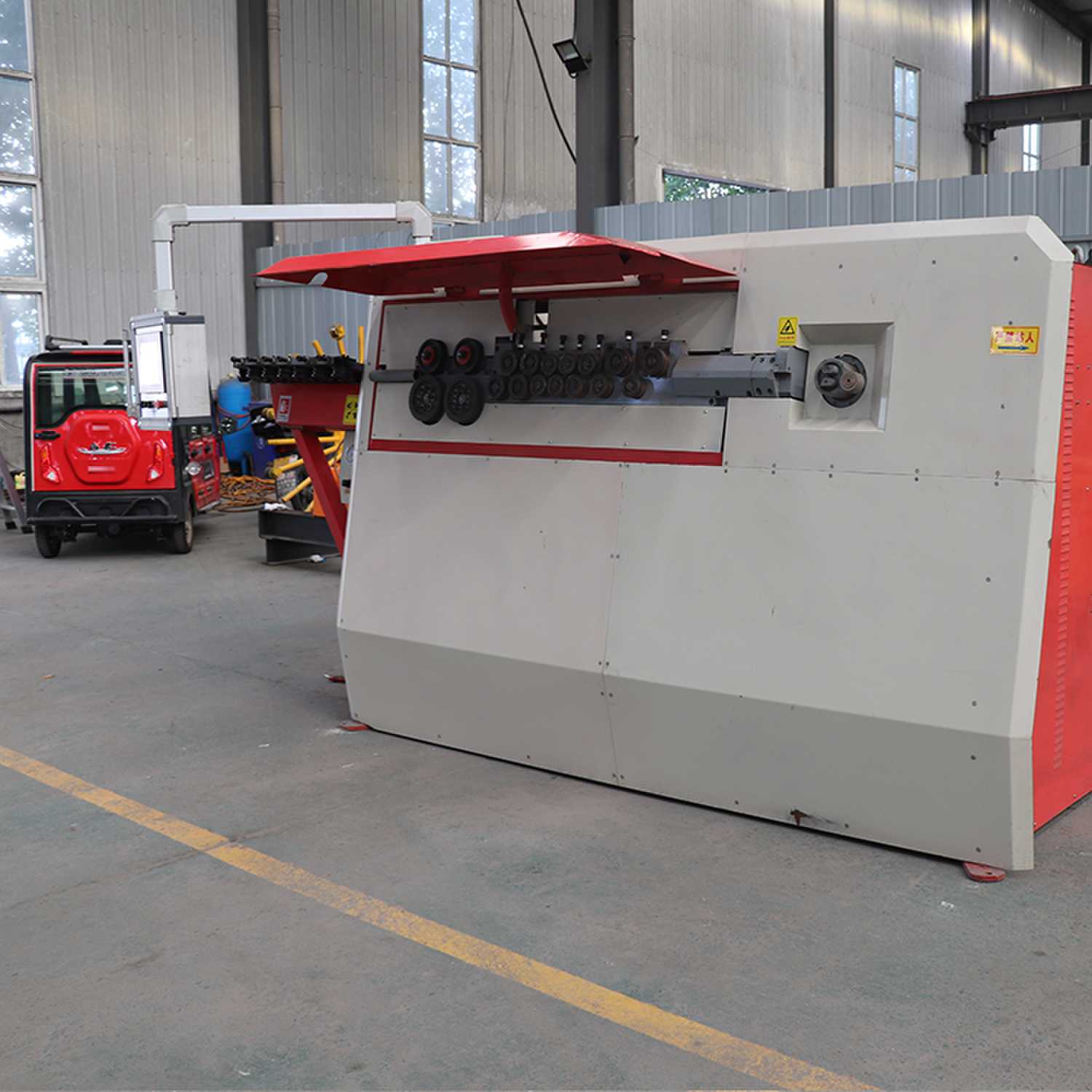

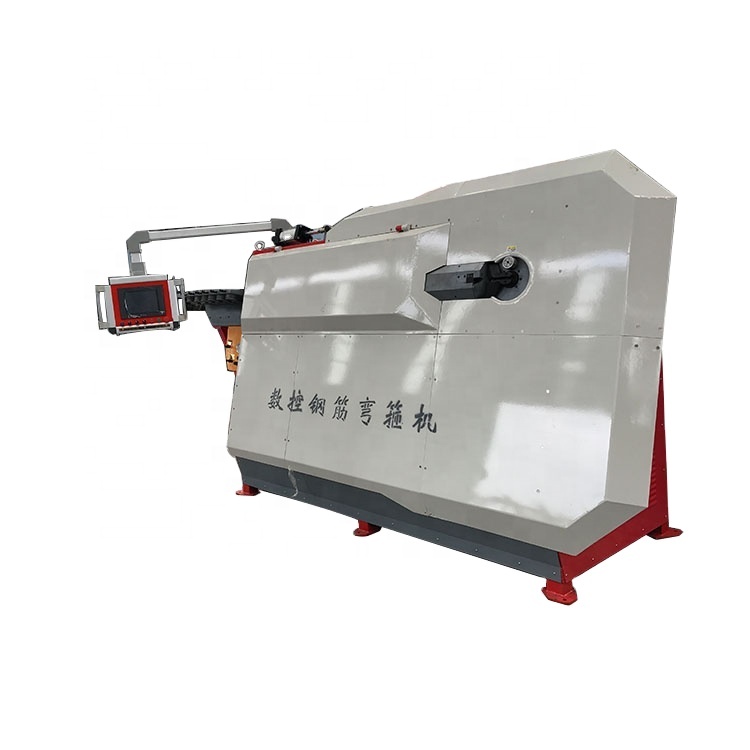

4-16mm Rebar CuttingBending MachineDiscover the ultimate solution for efficient and precise rebar processing with our CNC Electric 4-16mm Rebar Cutting Bending Machine. Designed to meet the demanding needs of construction and metalworking industries, this advanced machine combines cutting-edge technology with robust construction to deliver outstanding performance and reliability
Integrated with advanced CNC technology, the automatic wire feeding system takes center stage as a key feature of our CNC Electric 4-16mm Rebar Cutting Bending Machine. This intelligent system revolutionizes the rebar processing workflow by enabling precise, automated control over the feeding of rebars. It eliminates the need for manual adjustments, minimizing human error and significantly enhancing productivity. With its seamless integration into the machine's overall operation, the CNC automatic wire feeding system ensures a smooth and continuous process, allowing for efficient handling of rebars within the 4-16mm diameter range.

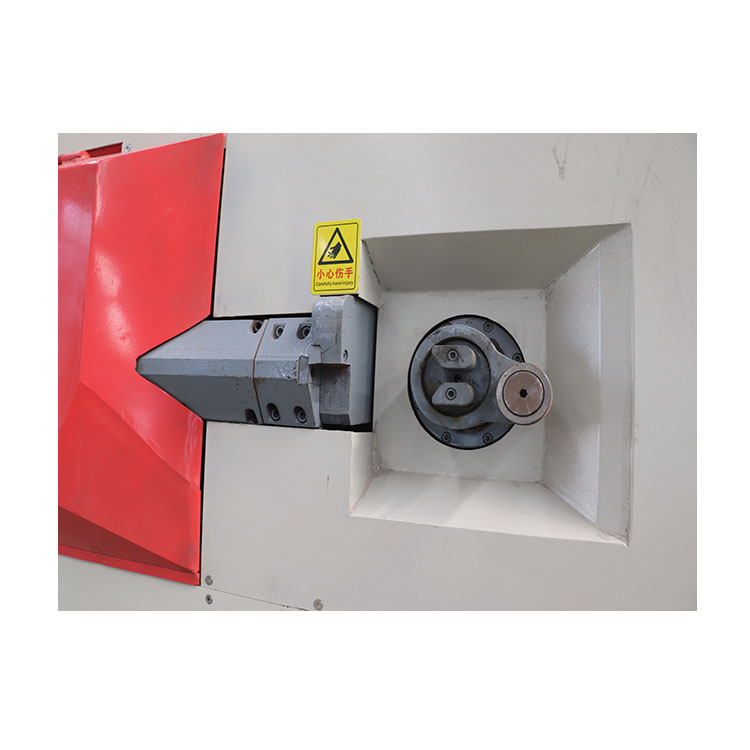

Split, Multi-Blade Design (Patented)
Our machine is equipped with a unique, patented split, multi-blade design that sets it apart from the competition. This innovative design is specifically engineered to reduce consumption costs, making it a cost-effective choice for businesses. The split blades allow for easy replacement of individual worn-out blades, rather than having to replace the entire blade set. This not only saves on material costs but also reduces downtime, as blade replacement can be done quickly and efficiently. The multi-blade configuration ensures consistent and accurate cutting, even for heavy-duty applications, providing long-lasting performance and durability.
Large Storage Capacity
With a large storage capacity that can save up to 400 processing geometric graphics, our rebar cutting bending machine offers a high degree of automation and flexibility. This feature allows users to store a wide variety of pre-programmed bending and cutting patterns, eliminating the need for repetitive manual programming. Whether you're working on simple straight cuts or complex geometric bends, the machine can quickly recall and execute the stored patterns, enhancing productivity and reducing setup time. The high degree of automation also ensures consistent results across multiple batches, making it ideal for large-scale production environments.
High Power Feeding Motor
To ensure the highest level of bending bar accuracy, our machine is fitted with a high-power feeding motor. This powerful motor provides the necessary torque and precision to handle rebars of various diameters and hardness levels. It ensures smooth and stable feeding of the rebars during the bending process, minimizing any potential for slippage or misalignment. The high power feeding motor works in conjunction with the machine's advanced control system to deliver precise bending angles and dimensions, meeting the strictest quality standards in the industry.
High-Quality Components for Longevity
We understand the importance of durability and cost-effectiveness in industrial machinery, which is why our CNC Electric 4-16mm Rebar Cutting Bending Machine is built with high-quality special materials and undergoes advanced treatment processes. The straightening wheels, traction wheels, and metering wheel are all crafted from premium materials that are designed to withstand the rigors of heavy use. Through high treatment processes, these components are given enhanced strength and wear resistance, resulting in a longer service life and lower operating costs. You can rely on our machine to perform consistently over time, even in the most demanding working conditions.
Invest in our CNC Electric 4-16mm Rebar Cutting Bending Machine and experience the perfect combination of efficiency, precision, and durability. Whether you're a construction company, metal fabrication shop, or any business in need of reliable rebar processing equipment, this machine is sure to exceed your expectations. Contact us today to learn more about how our product can enhance your operations.
Specification
Single wire bending (mm)
Φ5-12mm
Double wire bending(mm)
Φ5-10mm
bending angle
<±180°
Center pin diameter
20-32mm
Max traction speed
110m/min
Max. bending speed
1200° /sec
Length accuracy
±1mm
Bending angle accuracy
±1°
Average power consumption
6KW/h
Face rotation Angle
45°(90° -135°)
Pieces Processed
≤ 2
Pneumatic pressure
≥ 0.6Mpa
total power
28KW
Machining shape of reinforcement
Modular gallery+Personalized editing
Total weight
4800kg
operating ambient temperature
-5℃~ 40℃
size
4550*1300*2100(Length*width*height)
Company Profie
We are manufacturer of pile cage welding machine , CNC automatic steel bar bending machine,bending machine ,cutting machine, steel bar straightening machine etc.we also can supply setting up a new factory full line service . We have already exported various kinds of concrete pile ,pole and pipe concern making machines to overseas countries and regions such as Indonesia, Parkistan, Vietnam, Myanmar ,Korea,Malaysia ,South african,Mideast Southeastern Asia, etc..
