Automatic Steel bar Welding Robot Machine

Pile cage seam welder rebar cage roll seam welding machine

Features:

1. control system: PLC, touch screen, inverter.

2. automatic wire feeding mechanism, the spacing can be adjusted online, the error is small, high molding quality.

3. frequency control drag cage institutions, high running accuracy.

4. with more automatic hydraulic feed rollers, to prevent steel cage deformation due to its own weight.

5. equipped with automatic feeding device, easy to operate and improve efficiency.

6. template using the template ring plus catheter combination, can be quickly replaced and transform the quantity of main steel cage wire .

7. straightening systems are made of high strength alloy material, high strength, anti-wear and improve the life of wearing parts

Contact Now E-Mail Telephone WhatsApp

Product Details

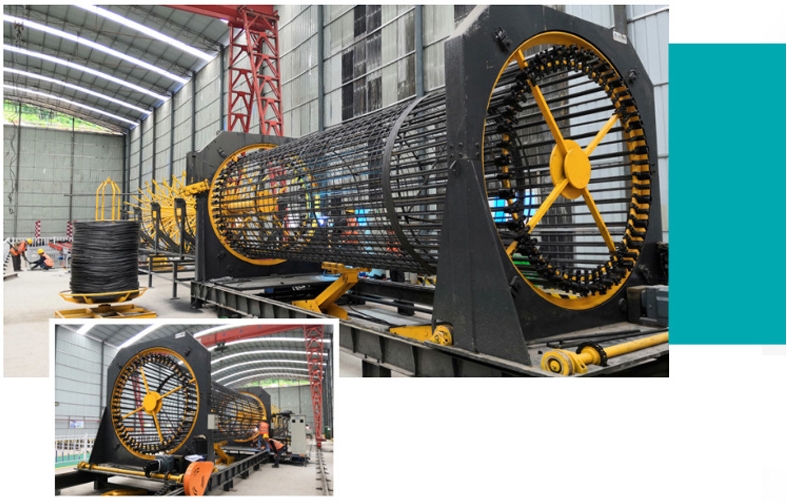

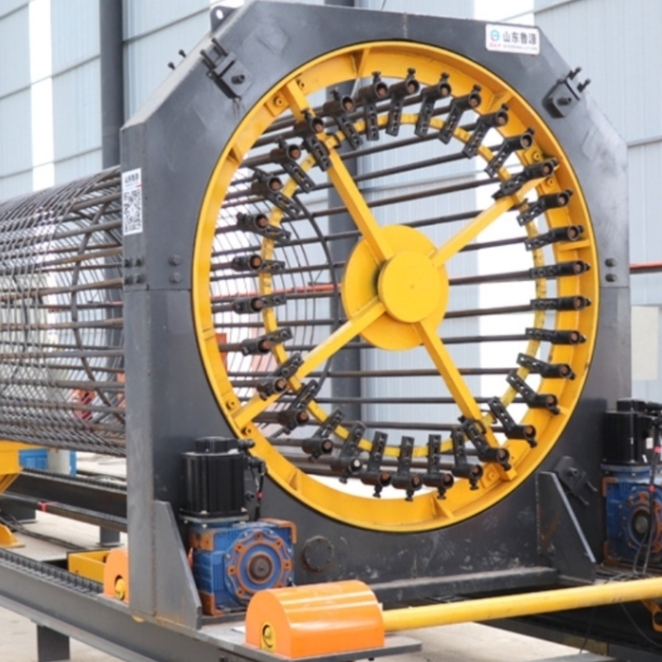

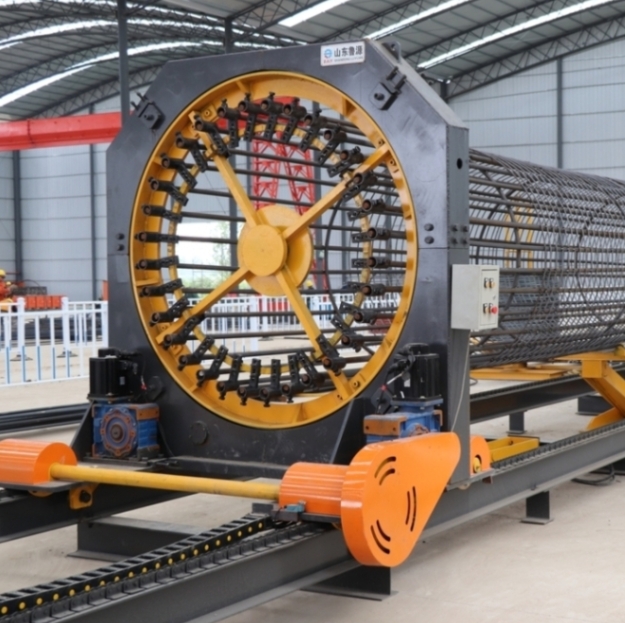

Automatic Steel bar Welding Robot

Engineer high-precision steel cages for  (pile foundation projects) with our CNC Steel bar Pile Cage Welding Machine, equipped with an automatic welding robot. Designed for durability, efficiency, and ease of operation, this machine revolutionizes steel cage fabrication for construction, bridge, and infrastructure projects.

Core Features for Superior Performance

1. Intelligent Control System

Powered by a PLC-based control system with a user-friendly touch screen and inverter, our CNC steel cage welding machine ensures precise parameter adjustment and real-time process monitoring. Achieve seamless control over welding speed, wire feed, and cage rotation for consistent, error-free production.

2. Automatic Wire Feeding with Adjustable Spacing

The advanced automatic wire feeding mechanism allows online spacing adjustment with minimal error (±1mm), delivering uniformly spaced stirrups and high-quality cage molding. Perfect for adapting to diverse project requirements without manual resetting.

3. Precision Drag Cage Mechanism

A frequency-controlled drag cage system ensures smooth, accurate movement, minimizing vibrations and maintaining strict dimensional accuracy during welding. Ideal for producing long, heavy-duty steel cages with zero deformation.

4. Hydraulic Support for Deformation Prevention

Multiple automatic hydraulic feed rollers provide continuous support, counteracting the weight of steel cages to prevent sagging or bending. This feature is critical for maintaining structural integrity in large-scale pile foundation applications.

5. Effortless Material Handling

The integrated automatic feeding device streamlines loading of main steel bars, reducing setup time and labor costs. Operators can quickly switch between projects, boosting overall productivity by up to 30%.

6. Rapid Template Replacement

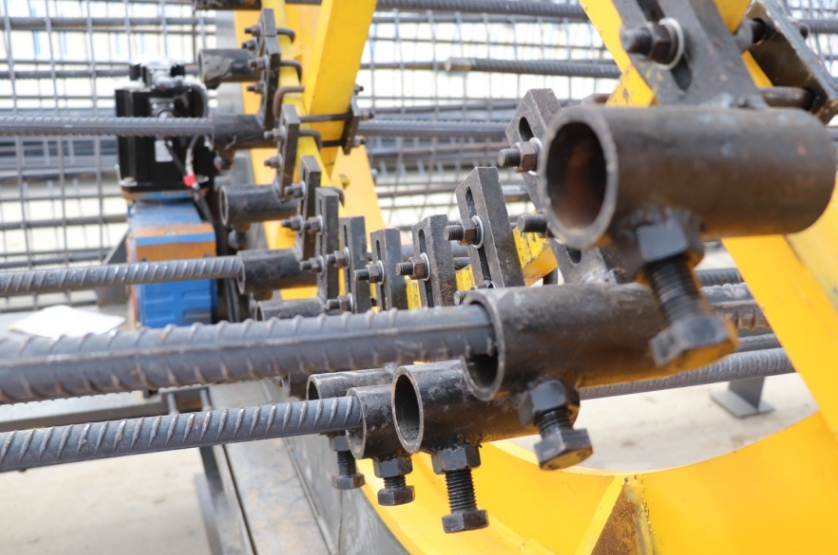

Our unique template ring + catheter combination allows fast replacement of mold components, enabling quick adaptation to different cage diameters and main steel quantities. No specialized tools required—simply swap and restart for flexible production.

7. Durable Wear-Resistant Components

Straightening systems crafted from high-strength alloy materials resist abrasion and impact, extending the lifespan of critical parts by 50% compared to standard models. Reduced maintenance and replacement costs mean lower total cost of ownership.

Ideal Applications

Perfect for:

Pile foundation construction (bored piles, cast-in-place piles)

Bridge & highway projects

Metro & railway infrastructure

Marine engineering (offshore platforms, port facilities)

Precast concrete factories

Handle steel diameters from 6mm to 32mm, producing cages up to 12 meters in length with unmatched consistency.

Why Choose Our Welding Machine?

Automatic Welding Robot: Reduces human error and improves welding speed by 40%.

SEO-Optimized Solutions: Searchable for keywords like steel cage welding machine, pile cage fabricator, and automatic welding robot for construction.

Factory-Direct Quality: Built with heavy-duty steel frames and precision components for 24/7 industrial use.

Streamline Your Fabrication Process Today

Invest in the CNC Steel bar Pile Cage Welding Machine with Automatic Welding Robot to elevate your steel cage production—where high precision meets hassle-free operation. Contact us for a custom quote or to discuss how this machine can optimize your project workflow.
