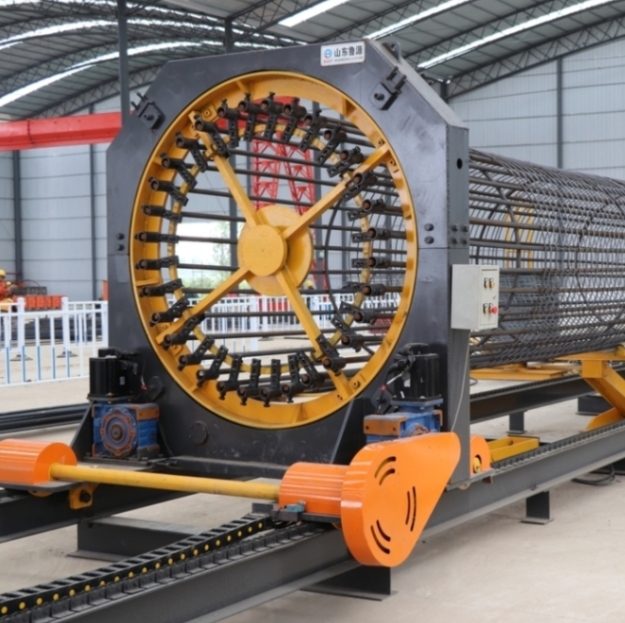

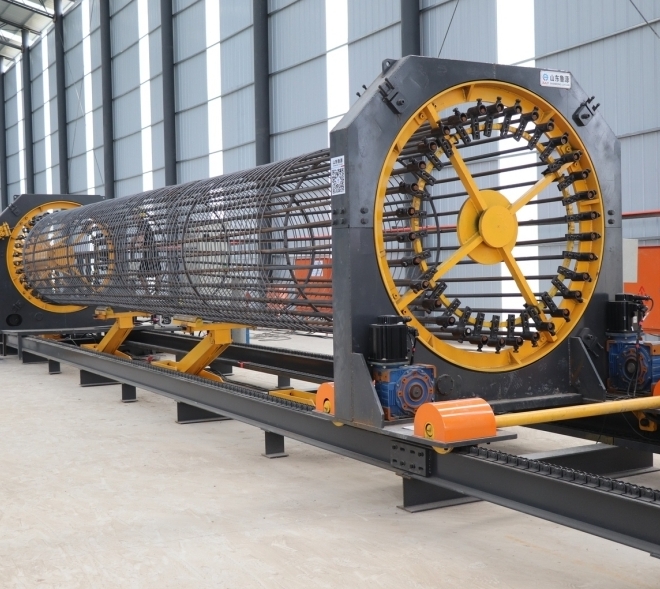

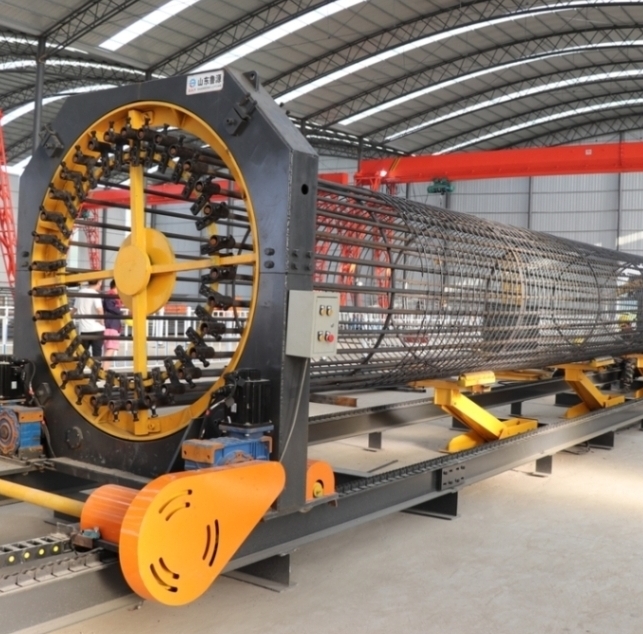

The movement and rotation of the fixed circling and moving disk are set by a PLC and 3 frequency converters. The motor synchronization is required to ensure the overall size of the finished cage.
It can complete the welding work of single main reinforcement single stirrup, single main reinforcement double stirrup and double main reinforcement double stirrup of pile foundation with diameter 400mm~2500mm.
The structure of the fixed frame and the mobile frame is optimized to reduce the weight of the main engine and the load of the power unit, so that the heavier steel cage can be made.
Engineer high-quality reinforced concrete structures with our Automatic Steel Bar Cage Roll Welding Machine, a cutting-edge solution designed for efficient, precise, and stable production of steel bar cages. Ideal for bridge construction, high-rise buildings, and precast concrete industries, this machine combines structural innovation with user-centric design to streamline (steel bar cage) manufacturing.
Hydraulic Anti-Sag Support: Multiple hydraulic devices cradle the steel cage during rotation, preventing sagging caused by self-weight and ensuring straight, uniform structures—critical for load-bearing applications.

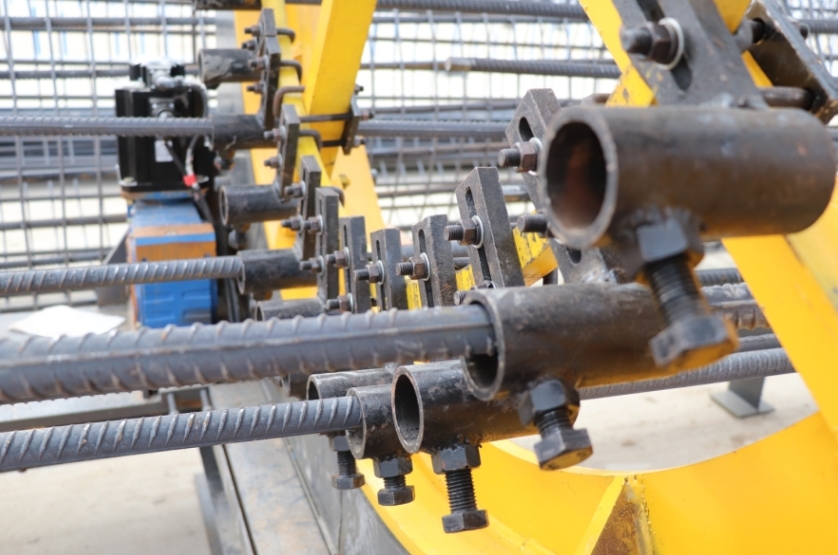

Multi-Component Tray: A dedicated tray system keeps main ribs organized and aligned throughout production, eliminating tangling and material waste. This feature is especially valuable for complex cage designs with dense reinforcement.
Chain-Type Main Bar Feeder: Automates main rib loading to reduce manual labor, suitable for 24/7 operations.

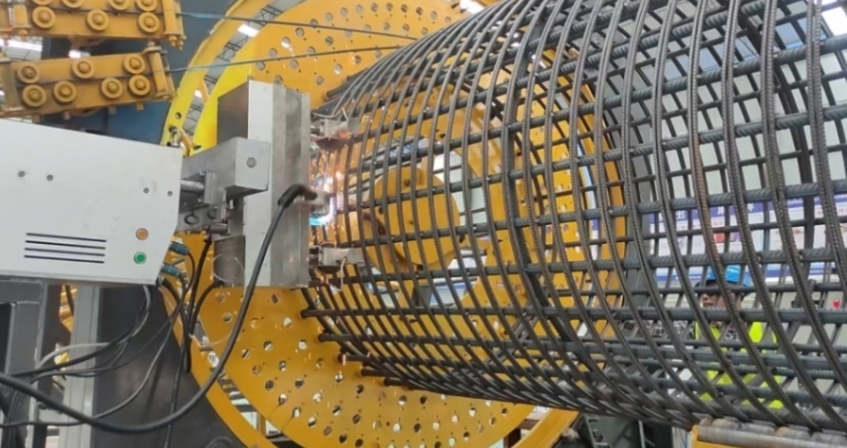

Welding Robot Integration: Achieves semi-automated welding for complex geometries, ideal for specialized projects.
Precision: ±2mm diameter accuracy via template-based control, meeting international standards for structural integrity.
Durability: Seamless steel pipe rims and heavy-duty components ensure 10,000+ hours of trouble-free operation.
Flexibility: Adaptable to 2–7 cage diameters per project, with intuitive manual adjustment for quick reconfiguration.
Quality Assurance: Hydraulic supports and organized material handling eliminate defects, reducing rework costs by up to 20%.
Technical parameters
Diameter of rib（mm）：Φ5~16
Interbar spacing（mm）: 50~500
Diameter of main bar（mm）: Φ12~50
Hydraulic station pressure（Mpa）:10
1, warranty period 1 year from B/L date.
2, within warranty period you could get spare parts for free.
3, You could get free training in our factory.
4, 24 hours technical support by Email, calling or door-to-door service.
we are manufacturer of pile cage welding machine , CNC automatic steel bar bending machine,bending machine ,cutting machine, steel bar straightening machine etc.we also can supply setting up a new factory full line service . We have already exported various kinds of concrete pile ,pole and pipe concern making machines to overseas countries and regions such as Indonesia, Parkistan, Vietnam, Myanmar ,Korea,Malaysia ,South african,Mideast Southeastern Asia, etc..
